A/C unit pictures for Bizarre!!
As I promised to send you picture of a/c unit.
Here you are :-)

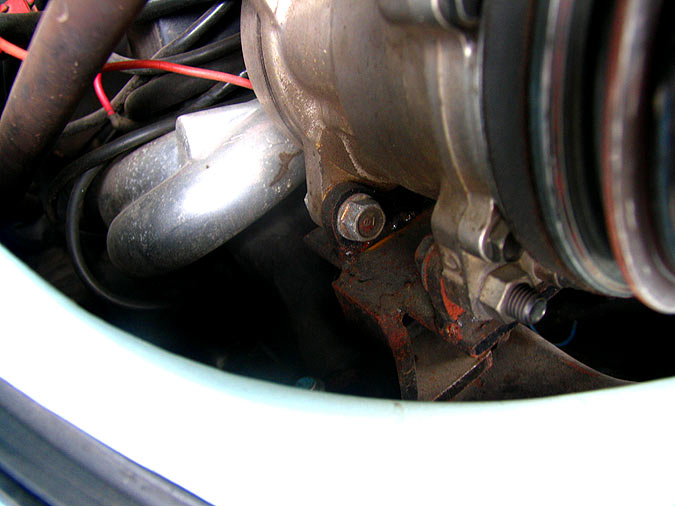

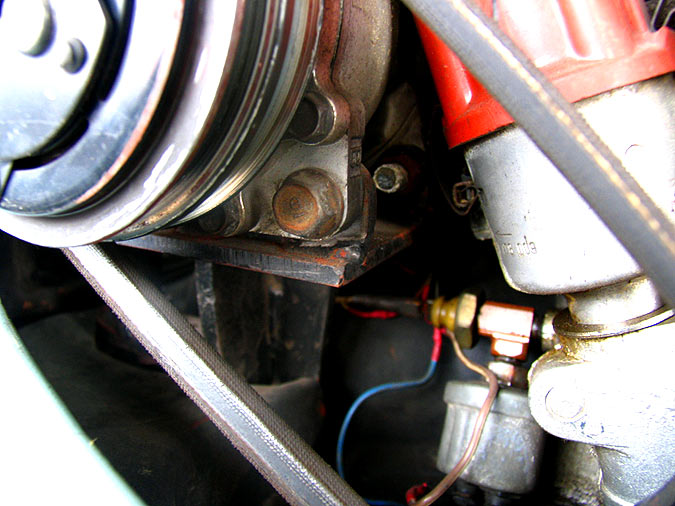

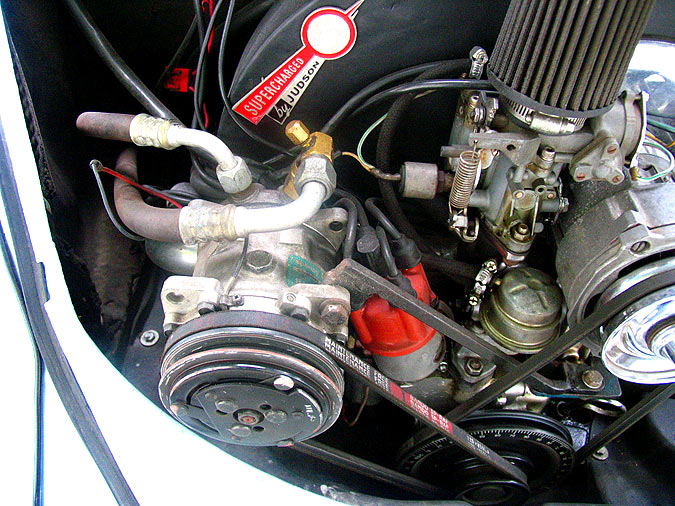

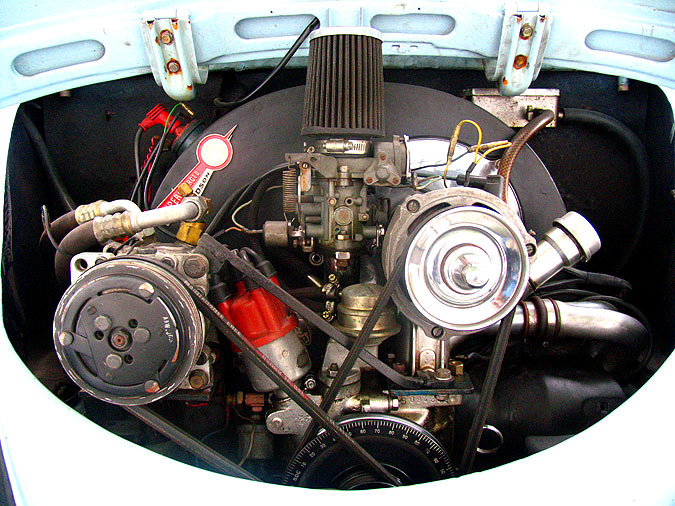

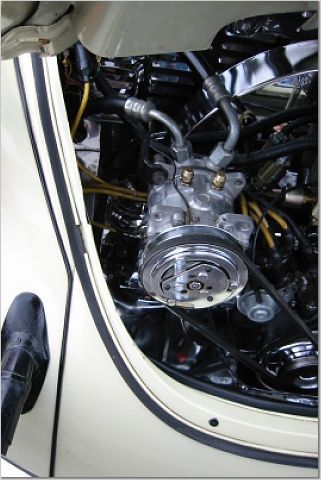

close up for compressor.

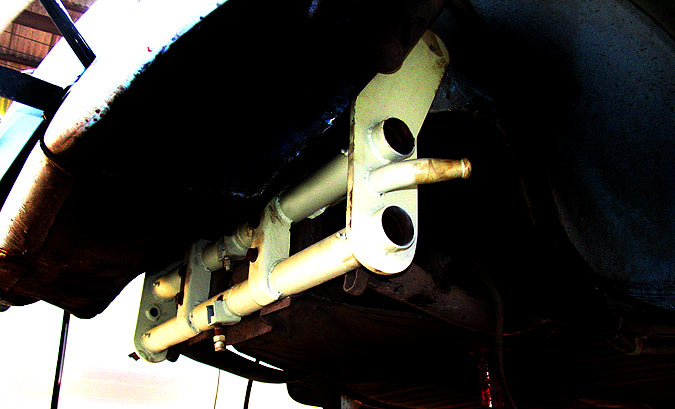

Coil ... or evaporator ??? not sure for this word.

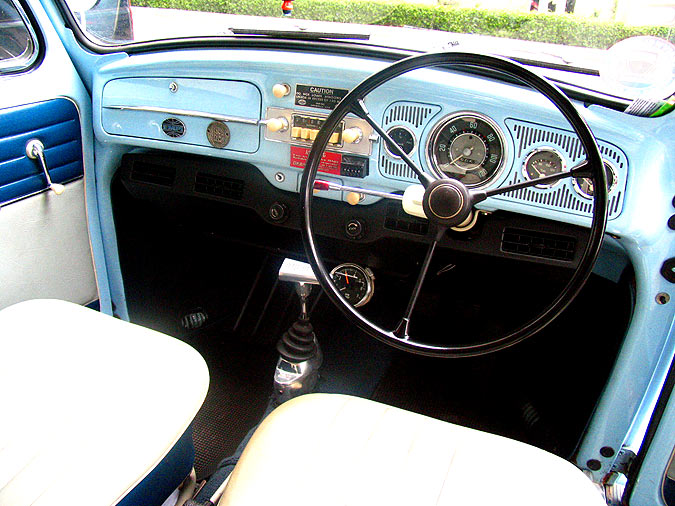

A/C dash :-)
BTW, I narrowed the front beam 2 days ago. turns out running great.
I did it myself.
Almost 1 inch gone for each side. Adjuster ready installed.
[ Edited on 7-8-2007 by napat ]
|
|
|
LUFTMEISTER
Veteran Volks Folk
Posts: 2041
Threads: 119
Registered: July 13th, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
Mood: BRISVEGAS in a state of flux
|
| posted on August 8th, 2007 at 05:40 AM |
|
|
looks nice! gotta be happy with that
Customer service is not dead in Australia.
Always after HAZET & MATRA & VW factory tools
|
|
|
vwkg
Officially Full-On Dubber
Schnell
Posts: 314
Threads: 17
Registered: January 17th, 2007
Member Is Offline
Location: Darwin, NT
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 8th, 2007 at 09:50 AM |
|
|
Looks great mate, awesome Beetle.
|
|
|
matara
Custom Title Time!
Posts: 1342
Threads: 255
Registered: August 25th, 2002
Member Is Offline
Location: Melrose Park, Sydney
Theme: UltimaBB Pro Grey
Mood: 356'd
|
| posted on August 8th, 2007 at 11:44 AM |
|
|
Hey Napat,
Judging by the stock carby your engine looks like a 1600. What sort of drag does the a/c compressor put on the engine when its on. Is it very
noticeable?
Not fitted the steering box kit yet as I'm getting new sills welded in.
Cheers
Steve
|
|
|
 Bizarre
Super Moderator
The artist formerly known as blue74l
Posts: 12737
Threads: 730
Registered: August 25th, 2002
Member Is Offline
Location: Abbotsford, Sydney
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 8th, 2007 at 01:42 PM |
|
|
Thanks heaps Napat.
Interesting
Futue te ipsum!!!
|
|
|
napat
Slammed & Awesome Dubber
Posts: 77
Threads: 13
Registered: June 11th, 2007
Member Is Offline
Location: Bkk, Thailand.
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 8th, 2007 at 06:03 PM |
|
|
| Quote: | Originally
posted by matara
Hey Napat,
Judging by the stock carby your engine looks like a 1600. What sort of drag does the a/c compressor put on the engine when its on. Is it very
noticeable?
Not fitted the steering box kit yet as I'm getting new sills welded in.
Cheers
Steve
|
Hi Steve, :-) good to see you here!
It's 1776cc I just change from stock to 90.5 and a little modification :-)
Umm when compressor start to work... just very very little noticeable.
If you park in a quiet place... you can hear they working. May be 2-3 decibel.
|
|
|
Anthiron
A.k.a.: Nicko McKay
Compulsive Aussie Vee Dubber
The Baja Rejuvenation Begins
Posts: 4936
Threads: 310
Registered: October 1st, 2003
Member Is Offline
Location: Buderim QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: Hell hath no fury like a womans scorn for sega.
|
| posted on August 8th, 2007 at 08:49 PM |
|
|
i think he means more about loss of engine power from the compressor kicking in.
62/60 model bug eye baja bug, (Full Build in Progress)
1974 Chevrolet Luv
1970 MK2 Ford Cortina GT
1979 Yamaha RX125 Two Stroke tracker project.
2004 Harley Davidson Sportster XL Custom
|
|
|
Anthiron
A.k.a.: Nicko McKay
Compulsive Aussie Vee Dubber
The Baja Rejuvenation Begins
Posts: 4936
Threads: 310
Registered: October 1st, 2003
Member Is Offline
Location: Buderim QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: Hell hath no fury like a womans scorn for sega.
|
| posted on August 8th, 2007 at 08:51 PM |
|
|
on another note, does anyone know where u can buy those stock looking dash grill plates with the cutouts for the guages?
62/60 model bug eye baja bug, (Full Build in Progress)
1974 Chevrolet Luv
1970 MK2 Ford Cortina GT
1979 Yamaha RX125 Two Stroke tracker project.
2004 Harley Davidson Sportster XL Custom
|
|
|
napat
Slammed & Awesome Dubber
Posts: 77
Threads: 13
Registered: June 11th, 2007
Member Is Offline
Location: Bkk, Thailand.
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 8th, 2007 at 09:35 PM |
|
|
Yes, I tell him that very little noticeable. Which means the power loss but not so much :-)
About the grill ... I didnt buy it. I make it in my garage. :P
|
|
|
penguin
A.k.a.: Chris
Bishop of Volkswagenism
ackkkkkk thhhhhpt!
Posts: 3383
Threads: 109
Registered: August 25th, 2002
Member Is Offline
Location: Canberra, ACT
Theme: UltimaBB Pro Blue ( Default )
Mood: Very tired, 3 little girls tired......
|
| posted on August 11th, 2007 at 05:25 PM |
|
|
Napat,
a couple of questions. What model/make is the compressor you have on the motor and where did you get the blower unit? (the part under the dash) that
size looks great for a bug, is it a local made thing or from outside Thailand?
Chris
[ Edited on 11-8-2007 by penguin ]
'Ah, whatever................'
|
|
|
Joel
Scirocco Rare
Now containing 100% E-Wang
Posts: 9368
Threads: 211
Registered: February 14th, 2006
Member Is Offline
Location: Northern Rivers NSW
Theme: UltimaBB Pro Purple
Mood: Tact Level 0.00
|
| posted on August 12th, 2007 at 08:43 AM |
|
|
that compressor is just a sanden one typical to most small jap cars
just go to a wreckers or get on ebay look for anything thats from a smallish 94 on car ( theyre on 134a and dont need retrofitting)

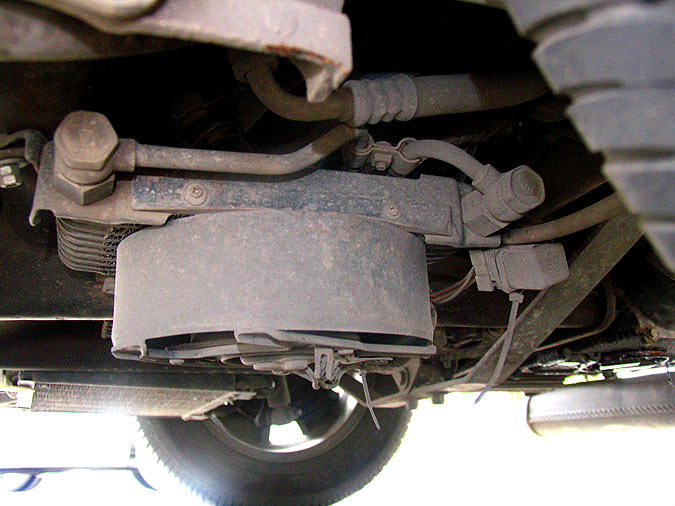

that under dash evap is just the standard one that dealers fitted when the cars were new
few 2nd hand ones getting round on US ebay
they do steal alot of space tho
this isnt a factory one but its same design
his website is http://www.gilmore-enterprises.net/GH/index.htm
napat, thats a very small drive pulley on the crank it wouldnt be spinning the compressor over real fast specially on a low revving vw motor
do many ppl beleive u that its a shorrock supercharger? LOL
ive got a supercharger going on my 74 cant wait to see how many ppl thing i have air conditioning
BTW thats the condensor underneath that is next to the gearbox
-Joel
[ Edited on 12-8-2007 by DUB74L ]
|
|
|
reub
Veteran Volks Folk
VWRX is gone...
Posts: 2053
Threads: 160
Registered: September 2nd, 2002
Member Is Offline
Theme: UltimaBB Pro Blue
|
| posted on August 12th, 2007 at 10:08 AM |
|
|
Any chance of a pic for the compressor bottom mount.
Cheers.
Reub
|
|
|
matara
Custom Title Time!
Posts: 1342
Threads: 255
Registered: August 25th, 2002
Member Is Offline
Location: Melrose Park, Sydney
Theme: UltimaBB Pro Grey
Mood: 356'd
|
| posted on August 12th, 2007 at 12:23 PM |
|
|
Barry (Bizarre), seeing as your in the aircon game, can I pick your brain on something. If I were to pu the evap and blower behind the back seat,
could you link the output of the blower to the heater tubes under the rear seat, and use the existing heater channel to bring the cool air to the
front of the car? Do you think there will be thermal(cooling) loss as the heater tubes aren't insulated. Also would there be a risk of condensation
causing premature rusting of the heater channel? Just a thought.
Cheers Steve
[ Edited on 12-8-2007 by matara ]
|
|
|
Bizarre
Super Moderator
The artist formerly known as blue74l
Posts: 12737
Threads: 730
Registered: August 25th, 2002
Member Is Offline
Location: Abbotsford, Sydney
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 12th, 2007 at 01:12 PM |
|
|
Steve
Theremal loss - yes. Some. Measurable....probably. But it is a short run.
Condensation. Very likely. Depends how cold it puts the air out. To some extent the carpet would insulate the heaterchannel inside the car. You could
armaflex under the rear seat. Underneath - no different to rain.
What you could do though is mount the evap so as it throws the air up from the parcel shelf - so it flows along the roof lining.
Then "suck" the air back the heater channels to the parcel area - drawing the air over the driver??
You could make up a change over so it blows heat and sucks air cond??
Gunna have to get serious about this
Futue te ipsum!!!
|
|
|
Bizarre
Super Moderator
The artist formerly known as blue74l
Posts: 12737
Threads: 730
Registered: August 25th, 2002
Member Is Offline
Location: Abbotsford, Sydney
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 12th, 2007 at 01:15 PM |
|
|
Gilmour Enterprises - any one got a returm email from them??
Sent several.
No answer
Futue te ipsum!!!
|
|
|
1303Steve
A.k.a.: Steve Carter
Scirocco Rare
Posts: 8621
Threads: 556
Registered: August 27th, 2002
Member Is Offline
Location: Sydney, NSW
Theme: UltimaBB Pro Blue ( Default )
Mood: Parrot Heading
|
| posted on August 12th, 2007 at 04:09 PM |
|
|
Hi
Aircooled net have units on there website. They look OK but would be LHD. Napat, does your engine lid shut OK, it looks close.
As far as the piece under the dash for flat screen bugs, you could have something made up in plastic or fibre glass to fit vents to.
I'm planning to fit AC on my 1303, the subi already has a compressor, I've bought a nice size evaporator & condenser. The condenser will either fit
into my tail or in front of the radiator. The evaporator I'm going to fit in the air box where the wiper motor is. I will block of the vents on my
scuttle panel and draw air from inside the car only, then blow it over the evaporator and then through vents in the dash.
Steve
|
|
|
Bizarre
Super Moderator
The artist formerly known as blue74l
Posts: 12737
Threads: 730
Registered: August 25th, 2002
Member Is Offline
Location: Abbotsford, Sydney
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 12th, 2007 at 05:09 PM |
|
|
The ACnet ones are Gilmour and do RHD in both Super and L bugs for $1400US
Might just go that way
http://www.aircooled.net/new-bin/viewproductdetail.php?keyword2=INA0001&carti...
What would be the difference between a 1302 and a standard beetle for the evap section??
Is the steel dash of a 1032 the same as a standard beetle??
Napat
The AC net set up has a single belt. - ie uses stock crank pulley
Why didnt you just run a single belt??
Not enough contact to drive the alternator from the crank pulley??
[ Edited on 12-8-2007 by Bizarre ]
Futue te ipsum!!!
|
|
|
matara
Custom Title Time!
Posts: 1342
Threads: 255
Registered: August 25th, 2002
Member Is Offline
Location: Melrose Park, Sydney
Theme: UltimaBB Pro Grey
Mood: 356'd
|
| posted on August 12th, 2007 at 07:52 PM |
|
|

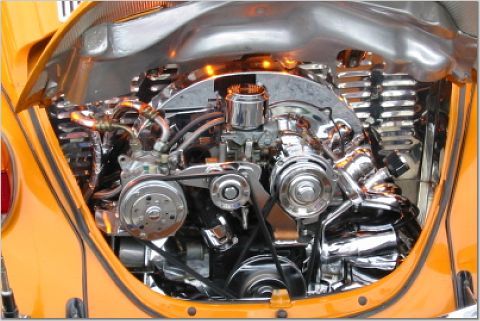

I was at a VW show a few years ago in Malaysia where they had a/c in most bugs. Here are some pics I took of their setups:-

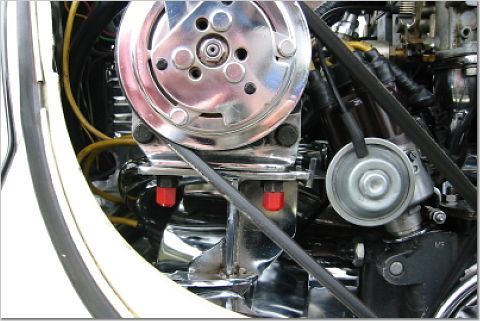

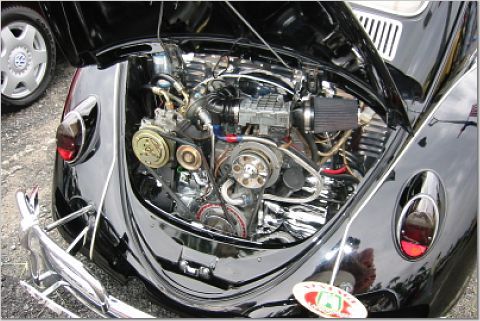

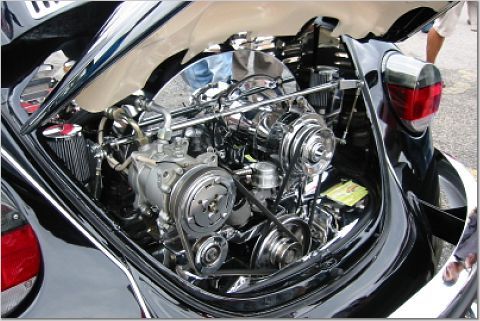

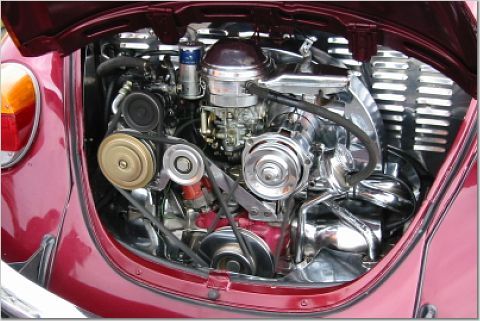

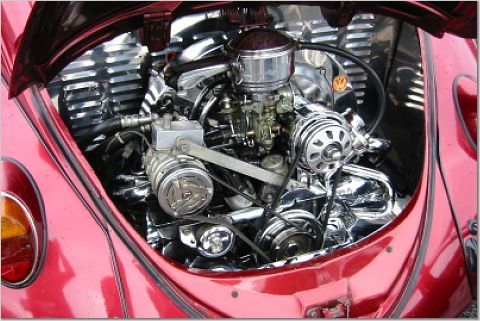

Cheers
Steve
|
|
|
Bizarre
Super Moderator
The artist formerly known as blue74l
Posts: 12737
Threads: 730
Registered: August 25th, 2002
Member Is Offline
Location: Abbotsford, Sydney
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 12th, 2007 at 08:26 PM |
|
|
and everyone of those runs a seperate belt.
Why??
Futue te ipsum!!!
|
|
|
Joel
Scirocco Rare
Now containing 100% E-Wang
Posts: 9368
Threads: 211
Registered: February 14th, 2006
Member Is Offline
Location: Northern Rivers NSW
Theme: UltimaBB Pro Purple
Mood: Tact Level 0.00
|
| posted on August 12th, 2007 at 08:32 PM |
|
|
u cant move them back far enough to line up with the main belt
the compressor hits the fan housing
|
|
|
Flintstones
Custom Title Time!
Posts: 1077
Threads: 69
Registered: August 27th, 2002
Member Is Offline
Location: Sydney
Theme: UltimaBB Psyche Blue
|
| posted on August 12th, 2007 at 09:17 PM |
|
|
Or is it the gearing from the smaller crank pulley?
Cheers
|
|
|
silver
Veteran Volks Folk
Dangerous when poked
Posts: 2169
Threads: 162
Registered: December 8th, 2002
Member Is Offline
Location: Sydney
Theme: UltimaBB Pro Blue ( Default )
Mood: In 2 Minds
|
| posted on August 12th, 2007 at 09:27 PM |
|
|
I think I will just open a window!
Keeping it real !
|
|
|
napat
Slammed & Awesome Dubber
Posts: 77
Threads: 13
Registered: June 11th, 2007
Member Is Offline
Location: Bkk, Thailand.
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 14th, 2007 at 03:58 AM |
|
|
Hey Bizarre :-)
DUB74 was right!
I cant pull back the compressor enought to use single belt on bug.
I've seen someone does it on his bus (more space on engine compartment) it's turn out "not enought power to spin the compressor" ... but Thailand
is very hot may the single belt suit for OZ. I m not sure :-)
Flintstones was right too. small pulley... out put more!
Hey reub-revhead! Will post more pics for you.
1303Steve .. The engine lid shut ok :-) there are 4mm. space between compressor and the lid. If you have oval bug you need a little modification.
Any question? I m here to answer as much as I can.
:-) I have dictionary to translate all technicle terms already!
|
|
|
reub
Veteran Volks Folk
VWRX is gone...
Posts: 2053
Threads: 160
Registered: September 2nd, 2002
Member Is Offline
Theme: UltimaBB Pro Blue
|
| posted on August 14th, 2007 at 10:53 PM |
|
|
| Quote: | Originally
posted by napat
Hey reub-revhead! Will post more pics for you.
|
Thanks Dude:thumb
Reub
|
|
|
napat
Slammed & Awesome Dubber
Posts: 77
Threads: 13
Registered: June 11th, 2007
Member Is Offline
Location: Bkk, Thailand.
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 16th, 2007 at 05:30 PM |
|
|
:-) here you are!
[ Edited on 16-8-2007 by napat ]
|
|
|
reub
Veteran Volks Folk
VWRX is gone...
Posts: 2053
Threads: 160
Registered: September 2nd, 2002
Member Is Offline
Theme: UltimaBB Pro Blue
|
| posted on September 2nd, 2007 at 12:08 AM |
|
|
Thanks dude.
Can I ask where the bracket is fixed to under the car? Is it the head or the body?
Sorry to bug you dude...
Reub
Reub
|
|
|
Joel
Scirocco Rare
Now containing 100% E-Wang
Posts: 9368
Threads: 211
Registered: February 14th, 2006
Member Is Offline
Location: Northern Rivers NSW
Theme: UltimaBB Pro Purple
Mood: Tact Level 0.00
|
| posted on September 2nd, 2007 at 10:17 AM |
|
|
all the ones ive seen like that pick up the top #4 exhaust stud
-Joel
|
|
|
