posted on April 7th, 2009 at 01:01 AM
VWRX Karmann cabriolet


Hi All! Some of you may know me from my website: http://www.ricola.co.uk

Just a quick summary of my project so far and my current plans!
Before it came off the road:
http://www.ricola.co.uk/images/cabrio/on_cups.JPG
I had fitted 996 brakes on all corners and also kerscher front struts with the cup 2 wheels

I then found some serious rust so it was off the road for a BIG overhaul!

Inside the heater channels, same both sides!
http://www.ricola.co.uk/images/cabrio/cab_channel_1.JPG

I am also using a short nose G50 transmission
http://www.ricola.co.uk/images/cabrio/G50.JPG
It has only done about 30k km and I also have an LSD to go in it.

Engine will be a WRX RA with VOS chip so about 300bhp, I had it in the car temporarily on the bug AT transmission before I decided to go G50:
http://www.ricola.co.uk/images/cabrio/eng_in_5.JPG

I was originally thinking about modifying the dash for the subaru instruments, but now I am considering using the complete subaru dashboard complete with heating and air conditioning, also moving the steering column so it is less off-centre

http://www.ricola.co.uk/images/cabrio/bug_dash_2.JPG

I also have some 996 turbo sports seats:
http://www.ricola.co.uk/images/cabrio/seats.jpg

Rust!
http://www.ricola.co.uk/images/cabrio/front_strengthener.jpghttp://www.ricola.co.uk/images/cabrio/front_channel.jpg

Rear strengthening panels removed:
http://www.ricola.co.uk/images/cabrio/rear_strengthener.jpg

There are a LOT of spot welds on this car!

I made up a removable frame to add extra body support while the heater channels were cut out
http://www.ricola.co.uk/images/cabrio/door_frame2.jpg

New channels and strengtheners after being stripped and repainted
http://www.ricola.co.uk/images/cabrio/channel_mock_front2.jpg

New A post bottoms on both sides
http://www.ricola.co.uk/images/cabrio/a_post.jpg

New crossmembers
http://www.ricola.co.uk/images/cabrio/nocrossmember.jpg http://www.ricola.co.uk/images/cabrio/crossmembers_fit.jpg

New bulkhead
http://www.ricola.co.uk/images/cabrio/bulkhead_out.jpg http://www.ricola.co.uk/images/cabrio/bulkhead_top_welded.jpg

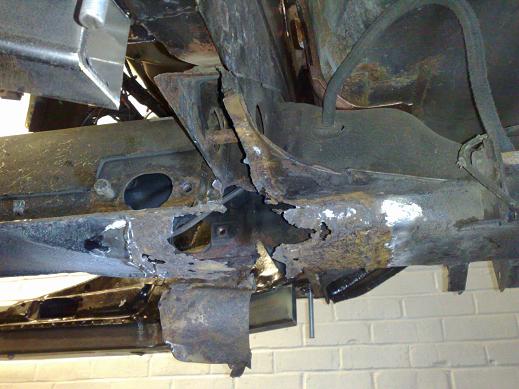

Inner wing strengthening was also rusty...
http://www.ricola.co.uk/images/cabrio/rust_dogbone.jpg http://www.ricola.co.uk/images/cabrio/bulkead_driver_side__welded.jpg
http://www.ricola.co.uk/images/cabrio/bulkead_driver_side_reinforcement_welded.jpg

New inner wing
http://www.ricola.co.uk/images/cabrio/drivers_inner_repair.jpg http://www.ricola.co.uk/images/cabrio/drivers_inner_repair2.jpg

For ALL the pictures have a look here: http://www.ricola.co.uk/cabrio_rust.htm

The bulk of the body repair is now done :cheers:

http://www.ricola.co.uk/images/cabrio/driver_side_footwell_welded.jpg

Now for squeezing in the G50...

http://www.ricola.co.uk/images/cabrio/chassis_centre_cut.jpg

http://www.ricola.co.uk/images/cabrio/g50_in.jpg

http://www.ricola.co.uk/images/cabrio/g50_in_top.jpg

I have positioned it 25mm higher and about 70mm forwards compared to the standard bug trans to get the subaru engine under the bodywork.

I'm now buildingup something along the lines of the sketch below, made out of 40x60mm tube, that way I can make them suitable for the subaru engine mounts. I am making the new floor perimeter from the same tube so will tie it all in together, I think it will be nice and strong when I'm finished.

http://www.ricola.co.uk/images/cabrio/new_horn_concept.jpg

Latest progress:

New brackets for the 911 front mount:
http://www.ricola.co.uk/images/cabrio/front_trans_bracket2.jpg

Getting the shape for the top of the new framehorns
http://www.ricola.co.uk/images/cabrio/new_top_horn.jpg

No going back now!
http://www.ricola.co.uk/images/cabrio/horns_cut.jpg

The splines remade to fit further out inside the torsion tube, I'm using shorter swing axle torsion bars now
http://www.ricola.co.uk/images/cabrio/splined_centre_cut.jpg

All welded in!
http://www.ricola.co.uk/images/cabrio/top_horn_welded.jpg http://www.ricola.co.uk/images/cabrio/top_horn_welded_2.jpg

More progress during the next week or so, a full 4 days next weekend!




Memberseagull
Compulsive Aussie Vee Dubber
*******


No Avatar


Posts: 4979
Threads: 752
Registered: December 25th, 2003
Member Is Offline

Location: PerthWA
Theme: UltimaBB Pro Blue ( Default )

posted on April 7th, 2009 at 01:15 AM



Thumbs up mate , quite a job you have there on the go



Looking for that special lady : PM me for coffee & cake
Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 7th, 2009 at 01:28 AM



Cheers. It has been a bit of a backburner project for me but the family has gone away for a couple of weeks so I'm pushing forwards and making the most of it :spin:



Memberseagull
Compulsive Aussie Vee Dubber
*******


No Avatar


Posts: 4979
Threads: 752
Registered: December 25th, 2003
Member Is Offline

Location: PerthWA
Theme: UltimaBB Pro Blue ( Default )

posted on April 7th, 2009 at 01:45 AM



Is the rust due to the salt on the road ?

whats the going rate for a G50 gear box on your side of the slab ?

cheers seagull




Looking for that special lady : PM me for coffee & cake
Memberseagull
Compulsive Aussie Vee Dubber
*******


No Avatar


Posts: 4979
Threads: 752
Registered: December 25th, 2003
Member Is Offline

Location: PerthWA
Theme: UltimaBB Pro Blue ( Default )

posted on April 7th, 2009 at 01:46 AM



& how did you find a VOS chip in the UK LOL !



Looking for that special lady : PM me for coffee & cake
Memberreub
Veteran Volks Folk
VWRX is gone...
*****


No Avatar


Posts: 2053
Threads: 160
Registered: September 2nd, 2002
Member Is Offline

Theme: UltimaBB Pro Blue

posted on April 7th, 2009 at 02:09 AM



You are a man possessed Rich!....
Looks great:tu: ... as always




Reub
Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 7th, 2009 at 02:41 AM



Cheers guys... Rust is a problem with all cars over here, climate and salt eventually gets them all!

G50 prices are all over the place, realistically from £1500 upwards, I got lucky finding mine with only 20k miles on it from a pampered car that was written off (a mate looked after the car and had bought it's parts but needed some fast cash). They are very popular for all sorts of mid-engined cars over here, particularly the Ultima GTRs...

VOS chips do get around! I bought it a while back on ebay when scoobyecus were very hard to come by, I may switch back at some point as the original guy over here has started mapping them for bespoke installs and the chips are available again, only really to get rid of the check engine light for the missing chargecooler pump (unless anyone knows how to fix that!)




MemberGibbo
Custom Title Time!
*****


Avatar


Posts: 1683
Threads: 324
Registered: June 29th, 2004
Member Is Offline

Location: Southside Brisbane
Theme: UltimaBB Pro Blue ( Default )
Mood: I Want to Learn Welding!

posted on April 7th, 2009 at 07:30 AM



WOW! Nice work mate, its going to be a sweet ride.



http://img63.imageshack.us/img63/7488/userbar334840xm.gif
Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 7th, 2009 at 07:34 AM

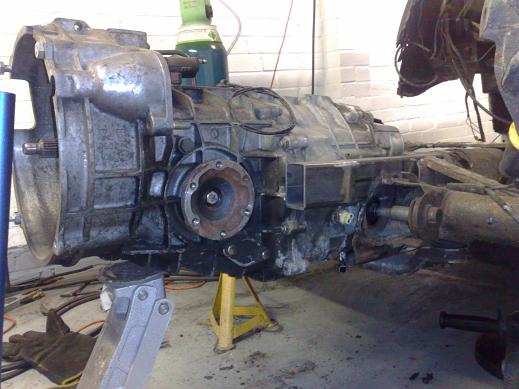

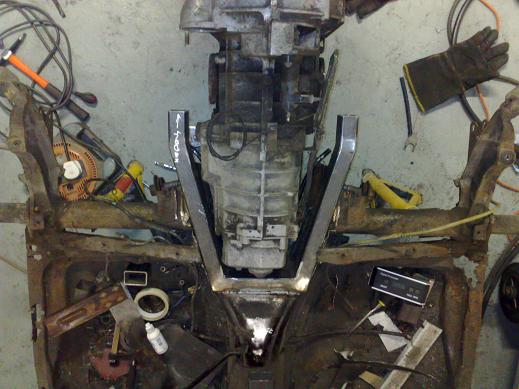

Mocked up the trans again tonight to double check clearances and work out how the bottom tube is going to fit in, I have it all planned in my head now :cool:

http://www.ricola.co.uk/images/cabrio/top_crossmember_trans_check.jpg

http://www.ricola.co.uk/images/cabrio/rev_switch.jpg




Member1303Steve
A.k.a.: Steve Carter
Scirocco Rare
*********


Avatar


Posts: 8621
Threads: 556
Registered: August 27th, 2002
Member Is Offline

Location: Sydney, NSW
Theme: UltimaBB Pro Blue ( Default )
Mood: Parrot Heading

posted on April 7th, 2009 at 09:21 AM



Hi Rich

Looking good, I hope to get back to mine soon. I'm glad I didn't have a the rust issues to contend with that you had.

Steve
Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 7th, 2009 at 04:42 PM



I'm still annoyed with the rust, I paid a good price for a supposedly solid car as I wanted to avoid that part too. At least I know now that it is 100% solid and it's RHD (most here are LHD imports)...



MemberJoel
Scirocco Rare
Now containing 100% E-Wang
*********


Avatar


Posts: 9368
Threads: 211
Registered: February 14th, 2006
Member Is Offline

Location: Northern Rivers NSW
Theme: UltimaBB Pro Purple
Mood: Tact Level 0.00

posted on April 7th, 2009 at 05:20 PM



Hi Rich, ive been following the resto and conversion over on VWKD
are you still happy with the radiator setup?
Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 7th, 2009 at 05:39 PM



Still happy? I don't plan to change the rads if that is what you mean, I will be cutting a hole into the front apron for direct air flow and it is a fully enclosed intake. The rad is a Pace ally one, it came out of a 500bhp sierra cosworth track car will be overkill if anything... The chargecooler rad sits infront of the main rad.

http://www.ricola.co.uk/images/cabrio/rad_fit.JPG
http://www.ricola.co.uk/images/cabrio/rad%2Bcharge_2.JPG




MemberJoel
Scirocco Rare
Now containing 100% E-Wang
*********


Avatar


Posts: 9368
Threads: 211
Registered: February 14th, 2006
Member Is Offline

Location: Northern Rivers NSW
Theme: UltimaBB Pro Purple
Mood: Tact Level 0.00

posted on April 7th, 2009 at 06:57 PM



yeah thats what i meant
just wanted to know if you were happy with the way its cooling

i plan to mount mine in the same manner i just wasnt sure if there was enough metal cut out behind for the hot air to escape out

im going to fit an american style A/C front valance as well
Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 7th, 2009 at 08:03 PM



American style A/C valance is still an option and I may yet rework the shape of the rear cover to maximise the outlet for the air to escape at the back but it's not a particular area of concern..



MemberFlintstones
Custom Title Time!
*****


Avatar


Posts: 1077
Threads: 69
Registered: August 27th, 2002
Member Is Offline

Location: Sydney
Theme: UltimaBB Psyche Blue

posted on April 7th, 2009 at 09:36 PM



looking good Rich:tu:
Cheers
Dino
Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 7th, 2009 at 10:23 PM



Cheers Dino,
I got the idea for what I plan to do with the floors from your build, except I'm going a bit further and replacing the bottom section of the napolean's hat with a single piece going through the centre tunnel (for some reason 1303 napolean hats are very expensive and mine's rusty there too).




MemberGTMac
A.k.a.: Andrew
Fahrvergnugen
****


Avatar


Posts: 976
Threads: 246
Registered: November 24th, 2004
Member Is Offline

Location: Sydney
Theme: UltimaBB Pro Blue ( Default )
Mood: Always asleep

posted on April 7th, 2009 at 10:43 PM



Nice work, love seeing stuff like this that is done well. Like the bracing setup for the gearbox, will have to be doing something heavy duty as well when I put the 915 into the Fasty.



1971 Type 3 Fasty - EJ20T

I love 242HP sleepers. :crazy:

How many sets of lights does it take a $229k Carrera S to learn? :lol: UPDATE: Cayman S, M3, B4 now added to the list.
Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 7th, 2009 at 10:59 PM



I'll be putting hoops over/under the trans as well some triangulation once I get more bits in place and see what space is left with the body fitted. My big aim is to minimise the affect all this is having on the look of the car, so no roll cage and will hopefully keep the stock rear seat base. I'll have to build in the seatbelt mounting points over the trans too.



Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 8th, 2009 at 05:58 AM

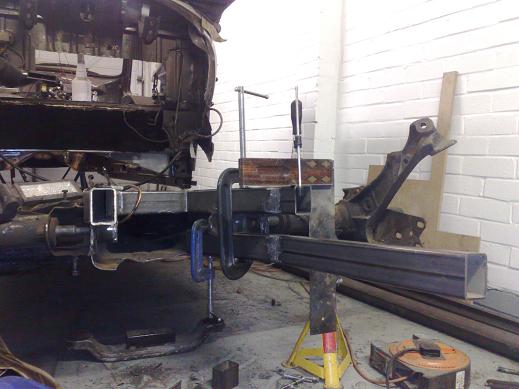

A bit more tonight, made up both lower framehorns and done most of the clearancing on one side ready to weld in. Note I have left them over-length to trim down later when the engine is in.

http://www.ricola.co.uk/images/cabrio/lower_horn_mock_2.jpg




Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 11th, 2009 at 07:46 AM



Even though I worked a half day today (we get tuesday off instead), I got out to the garage and got a load done today :D

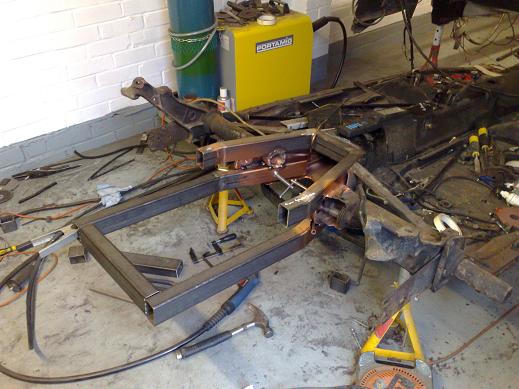

End piece tack welded in to keep it all square
http://www.ricola.co.uk/images/cabrio/lower_horn_weld_1.jpg

Fully seam welded with the new handbrake tubes welded in too
http://www.ricola.co.uk/images/cabrio/lower_horn_weld_3.jpg

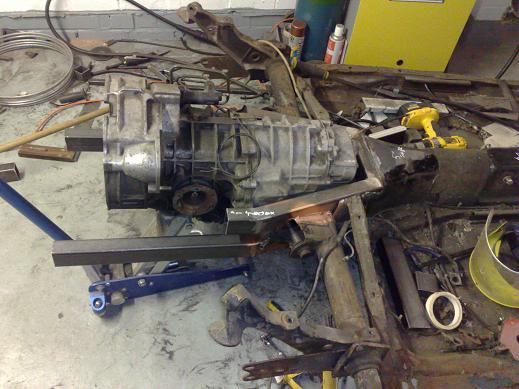

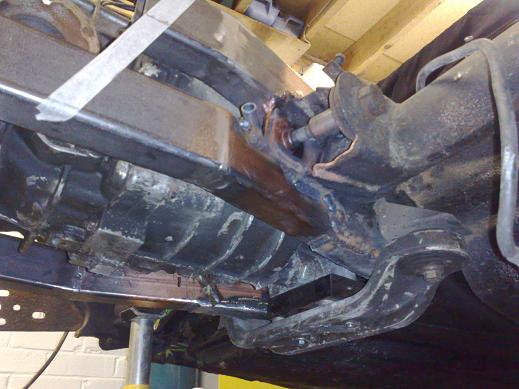

Measuring for the bridging pieces with the trans in place
http://www.ricola.co.uk/images/cabrio/lower_horn_weld_2.jpg

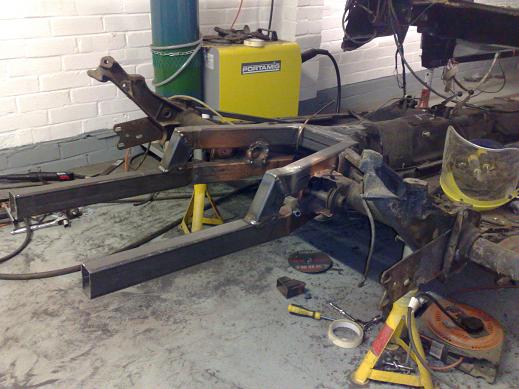

All welded!
http://www.ricola.co.uk/images/cabrio/lower_horn_weld_5.jpg

That's the framehorns pretty much done. I'll do a hoop over the trans later on and adapt the ends of the framehorns for the subaru engine mounts but I'm very pleased with today's progress. It's very strong already!




Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 12th, 2009 at 04:55 AM



More progress today:

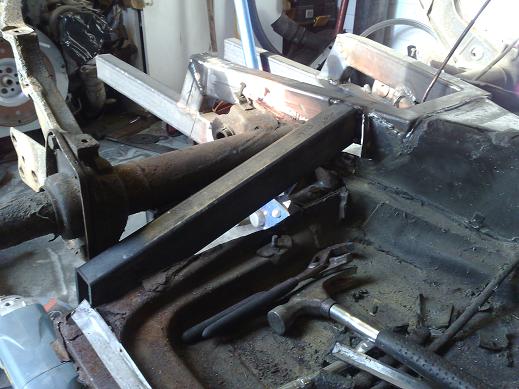

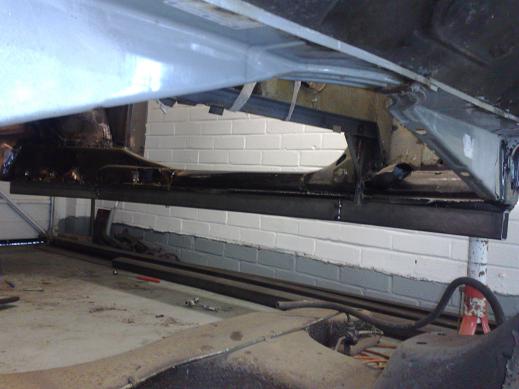

http://www.ricola.co.uk/images/cabrio/floor_frame_1.jpghttp://www.ricola.co.uk/images/cabrio/floor_frame_3.jpg

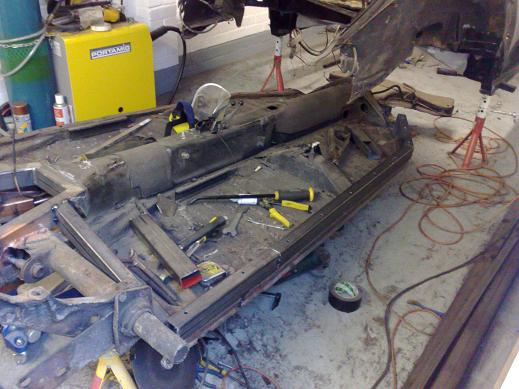

http://www.ricola.co.uk/images/cabrio/floor_frame_2.jpghttp://www.ricola.co.uk/images/cabrio/floor_frame_4.jpg

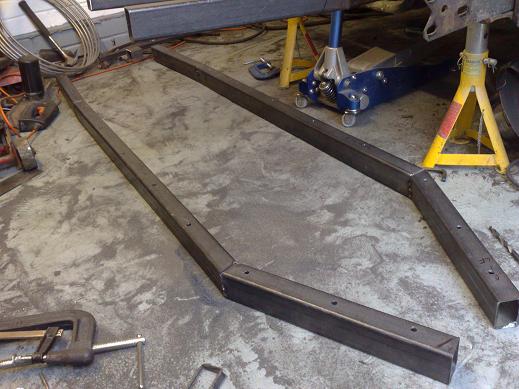

New perimeter rails for the floor, this will be a LOT stiffer than a stock chassis :D




MemberFlintstones
Custom Title Time!
*****


Avatar


Posts: 1077
Threads: 69
Registered: August 27th, 2002
Member Is Offline

Location: Sydney
Theme: UltimaBB Psyche Blue

posted on April 12th, 2009 at 07:39 PM



that'll stiffen it up Rich!!
What wall thickness did you end up going with?
Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 12th, 2009 at 09:17 PM



It's 3mm. Being a cabrio I need all the help I can get! Next step is to cut the bottom section out of the napoleans hat and weld a single new piece through the front of the tunnel, luckily it should fit just under the master cylinder positions. I'll also be re-working the pedals to have a clutch m/c in a mirror image to the brake m/c.



Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 15th, 2009 at 04:57 AM



A bit more done today...

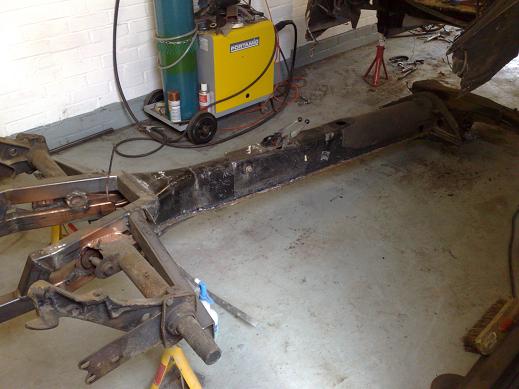

Cut the original floors out
http://www.ricola.co.uk/images/cabrio/chassis_no_floors.jpg

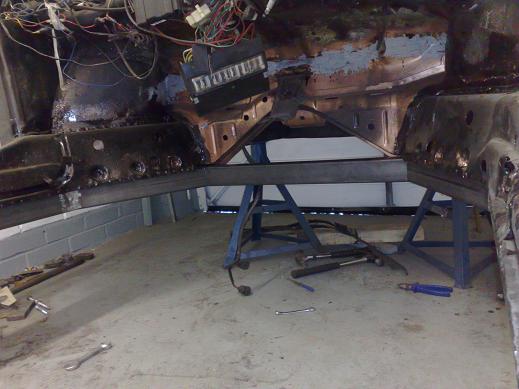

Bolted up the new chassis sections to the body to check for fit
http://www.ricola.co.uk/images/cabrio/chassis_front_mock.jpg

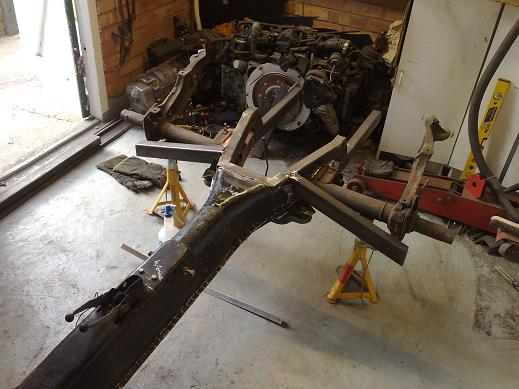

Both rear sections tacked in to the back end of the chassis
http://www.ricola.co.uk/images/cabrio/chassis_rear_tacked.jpg

I ran out of cutting discs :rolleyes:, have to cut the bottom part of the napolean's hat for the front cross tube before I can progress any more...

Once the new chassis sections are welded together and bolted to the body I'll be abel to do a trial fit of the engine and make it's mounts.




Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 20th, 2009 at 06:10 AM



A bit more done now...

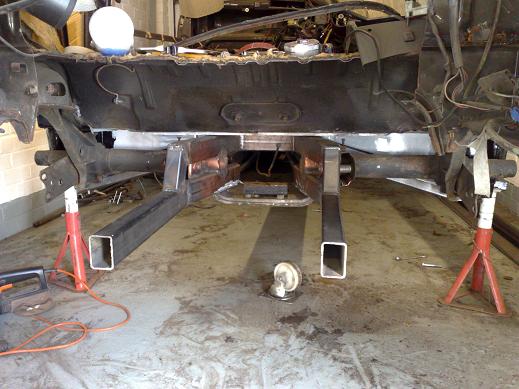

Put the body on the chassis to get everything aligned perfectly before welding it all together
http://www.ricola.co.uk/images/cabrio/body_on_pan.jpg

Years of bodges! Several plates, filler and pidgeon shit welding.
http://www.ricola.co.uk/images/cabrio/framehead_rust2.jpg

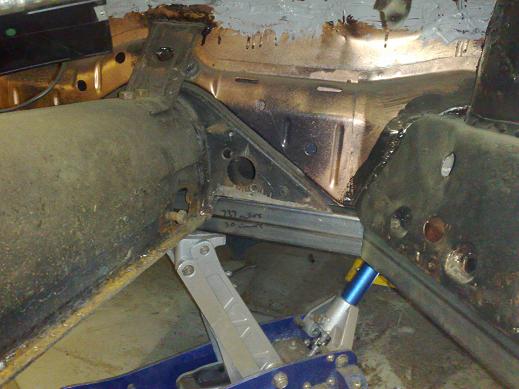

Front end together, nearly ready for welding...
http://www.ricola.co.uk/images/cabrio/chassis_front.jpg




Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 24th, 2009 at 07:21 AM

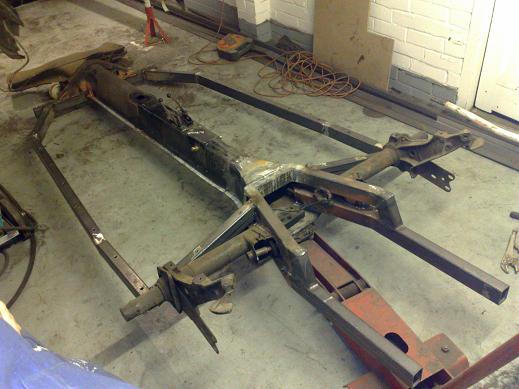

Went out this evening to weld the chassis sections together, then removed it so I can add some extra sections more easily. Getting there!

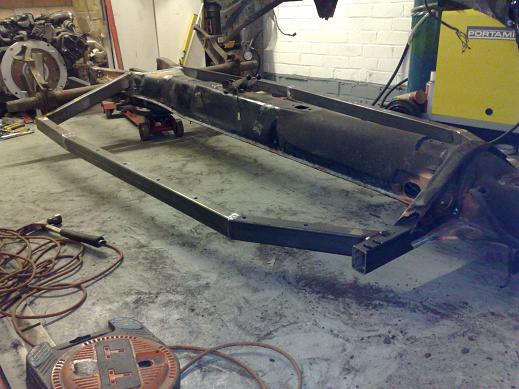

http://www.ricola.co.uk/images/cabrio/chassis_1.jpg

http://www.ricola.co.uk/images/cabrio/chassis_2.jpg

Away this weekend so no more progress for a week or so...




MemberGTMac
A.k.a.: Andrew
Fahrvergnugen
****


Avatar


Posts: 976
Threads: 246
Registered: November 24th, 2004
Member Is Offline

Location: Sydney
Theme: UltimaBB Pro Blue ( Default )
Mood: Always asleep

posted on April 24th, 2009 at 09:04 AM



Looking good Rich. What extra weight do you think will be added? Sure it will be well compensated by the new motor!

What type of clutch set up do you use with the G50?




1971 Type 3 Fasty - EJ20T

I love 242HP sleepers. :crazy:

How many sets of lights does it take a $229k Carrera S to learn? :lol: UPDATE: Cayman S, M3, B4 now added to the list.
Memberricola
Wolfsburg Wizard
***


Avatar


Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline

Location: UK
Theme: UltimaBB Pro Blue ( Default )

posted on April 24th, 2009 at 06:02 PM



At the moment it really isn't that much heavier, still easy to pull around the garage like a wheelbarrow with the new framehorns!

I'm using a stock 911 clutch for the year of the G50, should be fine for the moment (having thoughts of building a new 2.5sti based engine for the future!)




MemberFlintstones
Custom Title Time!
*****


Avatar


Posts: 1077
Threads: 69
Registered: August 27th, 2002
Member Is Offline

Location: Sydney
Theme: UltimaBB Psyche Blue

posted on April 24th, 2009 at 11:29 PM



That's a familiar sight :yes:
Looks good.

Cheers
D
 Pages:  1  2  3  ..  15


  Go To Top


Powered by GaiaBB, © 2011 The GaiaBB Group


[ Queries: 40 ] [ PHP: 18.0% - SQL: 82.0% ]
