posted on April 30th, 2009 at 11:49 AM



I have a few more questions now that iv looked at my engine more
1. What are the pipes circled in yellow, they run from the intake (i think) to the exhaust maifolds.
When i got a new exhaust, i couldnt connect them at first as i lost the gaskets and it was backfiring like a....out of these, what do they do?
2. I have three holes in my tinware, i have seen in some pictures another hose coming form the stock air filter? How does this work?
3. Whats the deal with the stock oil filler?
Someone told me the pipe going down is an overflow and i know the small bit on top should run to the air filter

Error
Sorry, you must be a registered user in order to download attachments.




http://i200.photobucket.com/albums/aa64/milestones54/Untitled-1.jpg
MemberAnthiron
A.k.a.: Nicko McKay
Compulsive Aussie Vee Dubber
The Baja Rejuvenation Begins
*******


Avatar


Posts: 4936
Threads: 310
Registered: October 1st, 2003
Member Is Offline

Location: Buderim QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: Hell hath no fury like a womans scorn for sega.

posted on April 30th, 2009 at 11:59 AM



the tubes running from your exhaust along you intake manifold are heat risers, they help to stop the manifold icing up by circulating the warm exhaust air.

the oil filler has the two breather tubes, one goes down and exits under the tinware, (this should have a rubber valve on the end, if it doesnt, buy one) the other should be connected to the air cleaner to scavenge case pressure into the intake. the two big holes are where your heater pipes would connect thru the tinware, if u dont have heaters then they are surplus and should be blocked off somehow.




62/60 model bug eye baja bug, (Full Build in Progress)
1974 Chevrolet Luv
1970 MK2 Ford Cortina GT
1979 Yamaha RX125 Two Stroke tracker project.
2004 Harley Davidson Sportster XL Custom
Membermilestones54
Slammed & Awesome Dubber
**


Avatar


Posts: 99
Threads: 21
Registered: March 18th, 2009
Member Is Offline

Location: Inner West Sydney
Theme: UltimaBB Pro Blue ( Default )

posted on April 30th, 2009 at 12:16 PM



I know aobut two of the holes, but i have a third hole in my tinware (marked 2) and im not sure what its for



http://i200.photobucket.com/albums/aa64/milestones54/Untitled-1.jpg
MemberMatt Ryan
A.k.a.: Matt Ryan
Fahrvergnugen
****


Avatar


Posts: 890
Threads: 107
Registered: January 6th, 2006
Member Is Offline

Location: Port Macquarie NSW
Theme: UltimaBB Pro Blue ( Default )
Mood: Fweemin

posted on April 30th, 2009 at 02:08 PM

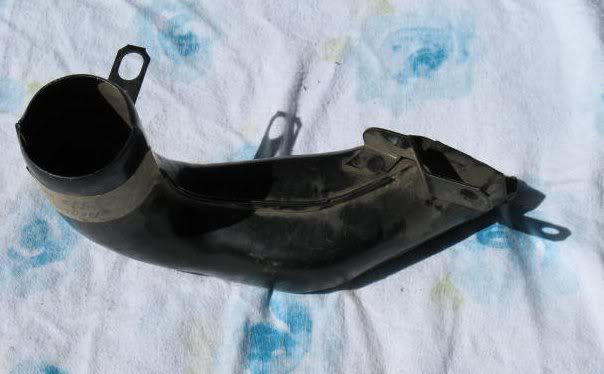

The third hole has this piece underneath the tin to collect air off the exhaust. It then travels up a cardboard tube to the inlet of the stock air cleaner to warm the air going into the carby for cold conditions. The air cleaner has a summer/winter flap that can close off the flow of heated air.

http://i47.photobucket.com/albums/f200/myran13/viewtopic.jpg

You can get away without it (unless you live in snow country lol) but the hole in the tinware needs to be covered up as it will let heat into the engine bay that shouldn't be there.

Regards,

Matt.




Membermilestones54
Slammed & Awesome Dubber
**


Avatar


Posts: 99
Threads: 21
Registered: March 18th, 2009
Member Is Offline

Location: Inner West Sydney
Theme: UltimaBB Pro Blue ( Default )

posted on April 30th, 2009 at 02:19 PM



Thanks for the info
Thats prett cool, but i dont really need it :p




http://i200.photobucket.com/albums/aa64/milestones54/Untitled-1.jpg
MemberJoel
Scirocco Rare
Now containing 100% E-Wang
*********


Avatar


Posts: 9368
Threads: 211
Registered: February 14th, 2006
Member Is Offline

Location: Northern Rivers NSW
Theme: UltimaBB Pro Purple
Mood: Tact Level 0.00

posted on April 30th, 2009 at 06:55 PM



The best filter u can run on a stock engine is a stock oil bath

those cruddy pancake filters like your engine has still have a PCV hose spigot

unless its been broken off, its probably at the back where you cant see it but its what the breather hose on the oil filler connects to

the later air cleaners were thermostatically controlled
they sucked up warm air through a hose connected to the stove pipe above that matt posted
once it got hot enough the flap shut and it sucked cool air from above the engine instead

damn this pic is going waaaaay back
but u can see the hot air hose ducted to the air cleaner

Error
Sorry, you must be a registered user in order to download attachments.
Membercolonel mustard
Son of Jim - Creator of Good
******


No Avatar


Posts: 2829
Threads: 51
Registered: February 27th, 2009
Member Is Offline

Theme: UltimaBB Pro Black

posted on April 30th, 2009 at 07:08 PM



I did away with the hoses from the fan shroud also, and have a metal air filter also. You can buy a front piece of tinware without the holes. I got mine from micks for $40 or something, but it doesnt fit because of my accident. got one of those, it will help (so im told by lots of pros). also, get some good breather hose fron the oil filler breather going to the air cleaner, that will help too (and make your engine bay less oily and greasey)
MemberJoel
Scirocco Rare
Now containing 100% E-Wang
*********


Avatar


Posts: 9368
Threads: 211
Registered: February 14th, 2006
Member Is Offline

Location: Northern Rivers NSW
Theme: UltimaBB Pro Purple
Mood: Tact Level 0.00

posted on April 30th, 2009 at 08:08 PM



colonel i hope for your engines sake when you did away with the heater hoses that you also did away with the heaterboxes for J pipes

your heads wont last real many brisbane summers with no air flow thro the heatboxes
Membercolonel mustard
Son of Jim - Creator of Good
******


No Avatar


Posts: 2829
Threads: 51
Registered: February 27th, 2009
Member Is Offline

Theme: UltimaBB Pro Black

posted on April 30th, 2009 at 08:27 PM



yeah, its a full merged empi piece of crud currently. the holes arent covered, so i also have three holes in the engine compartment... which aint cool. But the rear beaver is pushed in enough that I cant put in the new tin ware. fun. Hopefully have it fixed by the end of the year. putting on the thunderbird system, because I have terrible lack of responce because the current exhaust is way toooo big. Im totally sick of it at the moment, just want to shove the exhaust on and get some kadrons on there. darn 34pict3 ticks me off. I really want to get a 1915 with dells happening but I dont have that sort of cash growing on my money tree sadly.
Memberamazeer
A.k.a.: Surly Duff
Bishop of Volkswagenism
******


Avatar


Posts: 3029
Threads: 387
Registered: November 14th, 2005
Member Is Offline

Location: Wollongong
Theme: UltimaBB Pro Blue ( Default )
Mood: bitter

posted on April 30th, 2009 at 08:43 PM



Quote:
Originally posted by colonel mustard
yeah, its a full merged empi piece of crud currently. the holes arent covered, so i also have three holes in the engine compartment... which aint cool. But the rear beaver is pushed in enough that I cant put in the new tin ware. fun. Hopefully have it fixed by the end of the year. putting on the thunderbird system, because I have terrible lack of responce because the current exhaust is way toooo big. Im totally sick of it at the moment, just want to shove the exhaust on and get some kadrons on there. darn 34pict3 ticks me off. I really want to get a 1915 with dells happening but I dont have that sort of cash growing on my money tree sadly.


Dude, cover the holes. Silicon a spaghetti tin lid over them or something as a temporary fix. It might not look pretty, but neither does a hot engine sucking air up form the exhaust.




http://users.tpg.com.au/berzerk/Chris/images/polo/banner2.jpghttp://mefi.us/images/fuelly/smallsig-metric/157217.png

MemberMatt Ryan
A.k.a.: Matt Ryan
Fahrvergnugen
****


Avatar


Posts: 890
Threads: 107
Registered: January 6th, 2006
Member Is Offline

Location: Port Macquarie NSW
Theme: UltimaBB Pro Blue ( Default )
Mood: Fweemin

posted on May 1st, 2009 at 11:11 AM



here is a previous thread about covering those holes, there are some good pics about 3/4 of the way down the page.

http://forums.aussieveedubbers.com/viewtopic.php?tid=74189&page=1#pid690648


Regards,

Matt.
