| posted on June 10th, 2013 at 08:58 AM |
|
|
An electonics techo's out there?
The young blokes RC helicopter has started misbehaving,main rotors going flat out, even with the on/off switch turned off!!!
I have found a wire that was broken & resoldered this (white cable next to the blue cable), but have also found a couple of scorched looking
electronic components.
I think one is a diode & one is a heat sink?
diode is marked: SR240 mic
heat sink is marked: NTB (on) 85 No 3G R910

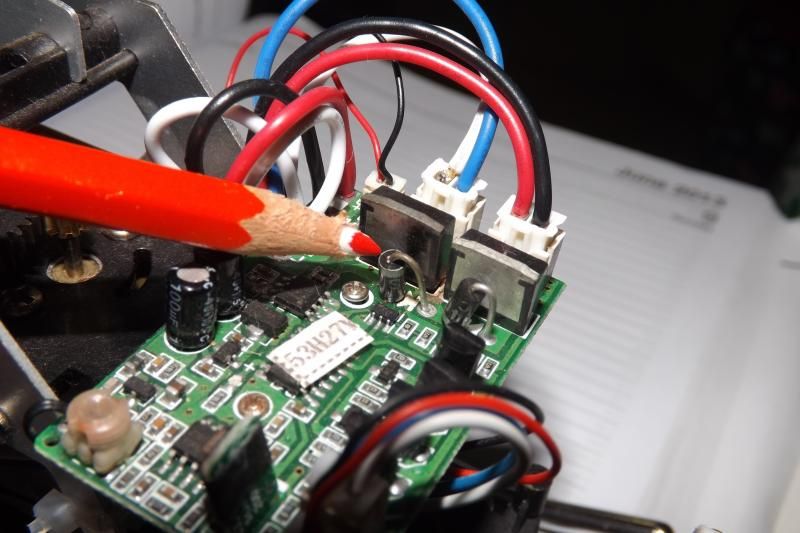

pictures attached the 2 items in question are where the red pencil is pointing.
Are my descriptions correct? Where can I buy them from? What exactly do I ask for? is there w ay of testing them with your ordinary everyday
multimeter?
Any help would be apprecaited.
Can get a new Circuit board, but would like to see how many$$$$ it would cost to try & repair what we've got.
Cheers Brendan
[size=5] Calling all NSW Mid North Coast Veedubbers
Click Below [/size]
[size=6]Mid North
Coast VW [/size] |
|
|
 barls
A.k.a.: Mr indestructible
Super Administrator
Causer of Chaos and Mayhem
Posts: 9470
Threads: 296
Registered: June 22nd, 2004
Member Is Offline
Location: cruising in denistone east
Theme: UltimaBB Streamlined2
Mood: indestructible? and listening to the voices
|
| posted on June 10th, 2013 at 09:35 AM |
|
|
The heat sink is more than likely a transistor.
Try jay car or similar mate. Don't know if the part numbers will transfer straight over.
You can test them but not in the circuit
|
|
|
AA003
A.k.a.: Phill
Custom Title Time!
Posts: 1189
Threads: 39
Registered: October 27th, 2011
Member Is Offline
Location: Southern Highlands
Theme: UltimaBB Streamlined2
|
| posted on June 10th, 2013 at 11:20 AM |
|
|
One is a Schotky diode.
The other may be the receiver code or model.
http://www.hobbyking.com/hobbyking/store/__688__190__Radios_Receivers-2_4Ghz_OrangeRX.html
I read it on samba, so it must be correct.
Sometimes Volkswagen dealers sell spare parts. Amazing isn't it!
|
|
|
vlad01
Compulsive Aussie Vee Dubber
Posts: 4270
Threads: 109
Registered: June 3rd, 2010
Member Is Offline
Location: Kyneton, VIC
Theme: UltimaBB Pro Blue ( Default )
Mood: Side ways
|
| posted on June 10th, 2013 at 01:50 PM |
|
|
those 2 heat sink looking things you are talking about are likely MOSFETs or at least standard type high current transistor. If I am not mistaken RC
toys today use a HF AC motor drivers so if it is going flat out there maybe a fault with HF driving circuity or further down like the receiving side
of the controller? If there is a short in the output transistors I don't think the motor will even turn.
I never worked on RC stuff before, so I would be pretty useless without the schematics.
71 notchback,
Past owner of, 70 NB, 73 SB and 72 FB TLE |
|
|
Uber Kafer
Wolfsburg Wizard
Posts: 414
Threads: 50
Registered: November 12th, 2009
Member Is Offline
Location: Bunbury (BunVegas) WA
Theme: UltimaBB Pro Blue ( Default )
Mood: Need a bigger shed..
|
| posted on June 10th, 2013 at 08:58 PM |
|
|
whats the other side of the board like? It looks like heat damage from this side, so is the other side charred? It might have been a bad joint that
killed the other components.
|
|
|
Special Air Service
Custom Title Time!
Chief "Gunna"
Posts: 1769
Threads: 210
Registered: October 4th, 2004
Member Is Offline
Location: Old Bar , Mid North Coast , NSW
Theme: UltimaBB Pro Blue ( Default )
Mood: In desperate need of a decent sleep
|
| posted on June 10th, 2013 at 09:21 PM |
|
|
Thanks for the input guys,
Other side of the board looks fine, I think it may have been the diconnected wire that caused the intial problem.
I'm begining to think a brand new board for less than $20 will be the easiest way around it......
[size=5] Calling all NSW Mid North Coast Veedubbers
Click Below [/size]
[size=6]Mid North
Coast VW [/size] |
|
|
vlad01
Compulsive Aussie Vee Dubber
Posts: 4270
Threads: 109
Registered: June 3rd, 2010
Member Is Offline
Location: Kyneton, VIC
Theme: UltimaBB Pro Blue ( Default )
Mood: Side ways
|
| posted on June 10th, 2013 at 09:33 PM |
|
|
| Quote: | Originally
posted by Special Air Service
Thanks for the input guys,
Other side of the board looks fine, I think it may have been the diconnected wire that caused the intial problem.
I'm begining to think a brand new board for less than $20 will be the easiest way around it......
|
yes, the cost of tech and or parts will cost you way way more.
I change boards at work every now and then that are worth more than a lot of people's car here and that still easier and cheaper than for me and god
forbid anyone else to try to repair them.
so 20 buck is soooo...... cheap, just go ahead and replace it.
71 notchback,
Past owner of, 70 NB, 73 SB and 72 FB TLE |
|
|
barls
A.k.a.: Mr indestructible
Super Administrator
Causer of Chaos and Mayhem
Posts: 9470
Threads: 296
Registered: June 22nd, 2004
Member Is Offline
Location: cruising in denistone east
Theme: UltimaBB Streamlined2
Mood: indestructible? and listening to the voices
|
| posted on June 10th, 2013 at 09:50 PM |
|
|
| Quote: | Originally
posted by vlad01
| Quote: | Originally
posted by Special Air Service
Thanks for the input guys,
Other side of the board looks fine, I think it may have been the diconnected wire that caused the intial problem.
I'm begining to think a brand new board for less than $20 will be the easiest way around it......
|
yes, the cost of tech and or parts will cost you way way more.
I change boards at work every now and then that are worth more than a lot of people's car here and that still easier and cheaper than for me and god
forbid anyone else to try to repair them.
so 20 buck is soooo…… cheap, just go ahead and replace it.
|
agreed if i was still in the workshop from 2 jobs ago id say give it to the old man ill have it back in a month or two. but sadly
not there anymore.
|
|
|
narumi
Seriously Crusin Dubber
I'll do it tomorrow
Posts: 138
Threads: 8
Registered: August 24th, 2011
Member Is Offline
Location: Adelaide, SA
Theme: UltimaBB Psyche Red
|
| posted on June 17th, 2013 at 12:21 AM |
|
|
ntb 85n03g is a mosfet not transistor
there is no heat sink there. it is just the component package.
it is probably driven by a microcontroller of some sort which drive the mosfet with pulse width modulation
just like everyone said if it's $20 just buy a new board. most place will charge atleast $35/ hour
mosfet like that is probably around $5 at your local electronic shop and I don't think that is what's wrong
|
|
|
L7back
Slammed & Awesome Dubber
Posts: 89
Threads: 23
Registered: August 27th, 2011
Member Is Offline
Location: Sydney
Theme: UltimaBB Pro Black
Mood: Over the hump, it's all down hill from here.
|
| posted on June 17th, 2013 at 08:38 PM |
|
|
Finally I can contribute!
First. Go buy the $20 PCB, there may be components on there that look fine but are cactus.
Second. Yes you have a standard diode, as indicated by the white marking directly under the component on the board. It can be tested in circuit with
a standard multimeter, just put it on any resistance setting, if it reads short circuit its fried!
Third. You sort of got the other component right, what you have described as a heat sink is a part of the component that is used to transfer heat to
a heat sink used to cool this component down. If a heat sink was mounted on the component it may not have burnt out in the first place. As to what the
component is, It may be an output FET or it could be a Bridge Rectifier Diode, used in power supplies to provide a constant voltage. Turn the board
upside down, 3 legs =FET or transistor.... 4 legs = Bridge rectifier. My guess without seeing a schematic diagram is that the white, blue, red &
black wires are from the power supply and the mystery component is a bridge rectifier diode.
For the other techs out there, ntb 85n03g is a N-channel power MOS FET, Typical Applications
• Power Supplies
• Converters
• Power Motor Controls
• Bridge Circuits
72 Bay Microbus, 67 Squareback, 59 Deluxe Bug  : |
|
|
vlad01
Compulsive Aussie Vee Dubber
Posts: 4270
Threads: 109
Registered: June 3rd, 2010
Member Is Offline
Location: Kyneton, VIC
Theme: UltimaBB Pro Blue ( Default )
Mood: Side ways
|
| posted on June 17th, 2013 at 09:52 PM |
|
|
its a helicopter, no power supply other than battery. its a MOSFET for driving the 3 phase variable motor, exactly like a router spindle and frequency
convertor or it could be a H bridge motor drive.
I just re read the OP, you say it goes flat out either on or off? may likely be an internally shorted output MOSFET, thats real common if its been
over heated or static discharge or cheap china component, I'd go with the latter. With the motor disconnected the output devices should measure in
the mega ohm range across source and drain, few 100k from gate to the S or D I think?, if they are close to 0 ohms they are stuffed.
