| posted on June 22nd, 2005 at 08:36 PM |
|
|
FS: Heavily modified SEAT Ibiza Cupra/Mk3 Golf GTI 16v - Quad Throttles etc etc **SOLD SOLD SOLD**
SPECS:
- 11/1998 SEAT Ibiza GTI 16v CupraSport
- 90,000 odd kms on car and engine
- IMMACULATE condition in and out
- Garaged all its life
Engine Spec (as sold):
- 1984cc (bore x stroke = 82.5 x 92.8mm) VW ABF code tallblock 16v
- Custom Ground KENT Cams camshafts from the UK with 278deg duration and 11.04 and 11.45mm lift in/ex respectively
- KENT cams alloy vernier pulley
- Genuine Volkswagen Motorsport Golf III ultralight hydraulic lifters
- Dr Schrick h/d 16v valve springs (rated to 8,000rpm)
- ARP Connecting Rod bolts
- AEM Wolf 3D standalone engine management system in custom dash console to ensure car looks standard to thieving eyes!! Rev limiter set at 7,500rpm -
largely for safety. Engine rated to 7,800, cams to 8,000rpm.
- Ford BA XR6 Turbo fuel injectors
- Custom made EFI Hardware Quad Throttle Bodies, DCOE, 45mm, short Redline trumpets and Unifilter air filter socks (produce a sound equal to that of
original 911 2.8 RSR!!)
- Custom alloy, 2 piece heatshield/airbox
- Custom polished alloy breather tank and silicone hoses
- Polished exhaust manifold heatshield (for pure 'bling' factor!!)
- SDG proform carbon fibre battery cover (also for pure 'bling' factor!!)
- I know I've missed something but you get the idea.
- With 'only' these mods, I have engine receipts to over $15,000
- Motul Syntra V competition oil used only
- Serviced every 5,000ks
Chassis/Interior etc:
- H&R Height adjustable coilover suspension, lowered about 50/40mm f/r
- H&R 22mm front swaybar, Whiteline 22mm rear swaybar
- Wiechers rear strut brace, OMP front strut brace
- Eibach 15mm per side rear wheel spacers
- 280mm brakes with Ferrodo pads
- 16"x 6.5" Ronal Multispoke alloys with 90% tread GSD3s
- Recaro front and rear seats
- OMP 4pnt driver's harness
- Conrero Gearknob and short shift
***Over $20,000 in receipts***
Genuine buyers only (I've had enough of tyre kickers with this car!!)
Will take $15,500, NO offers.
Call 0407 926 151 or email Cupracingscb@hotmail.com
Car is in Hobart: WILL PERSONALLY DELIVER AUSTRALIA WIDE

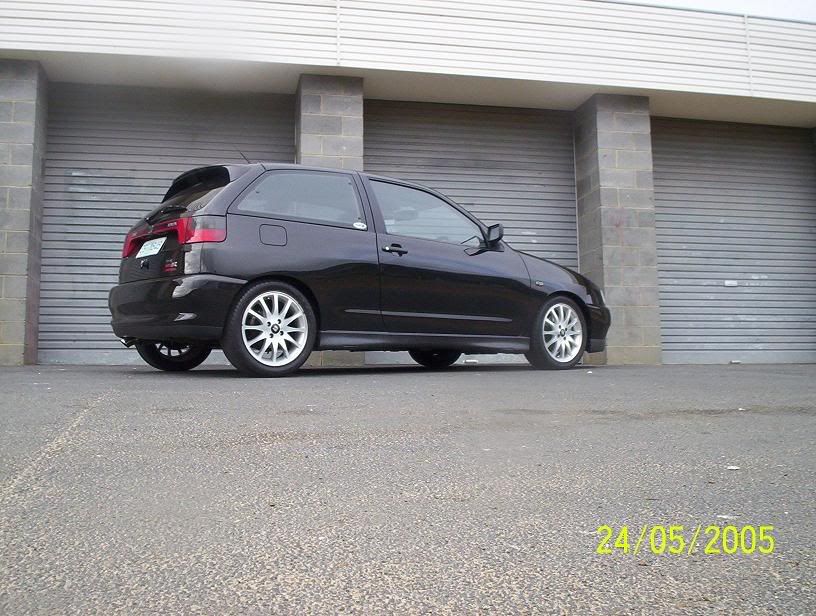

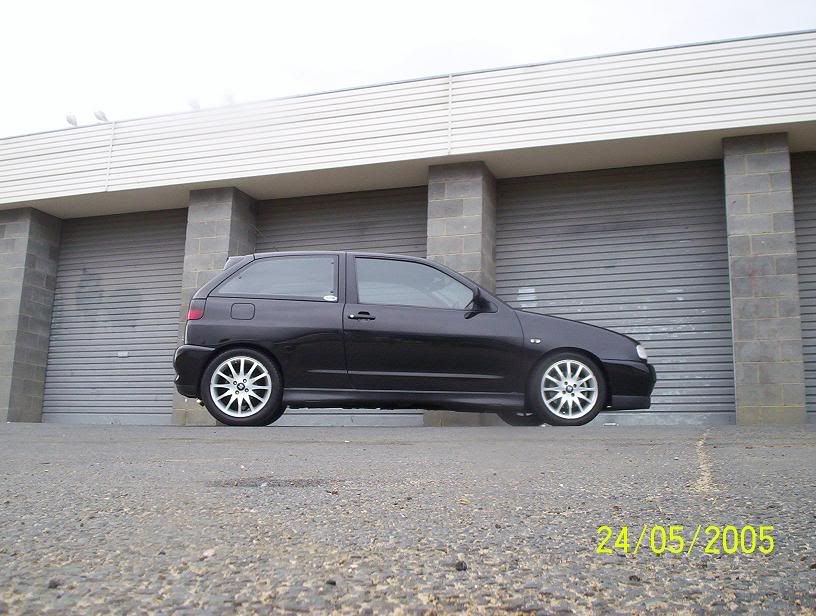

PICS:
[Edited on 22/6/2005 by ABF2.016V]nn[ Edited on 8/7/2005 by ABF2.016V ]
-Mk1 Golf 2.0 16v ABF
-SEAT Ibiza Cupra 2.0 16v, built motor on Throttle Bodies
-SEAT Ibiza Cupra 2.0 16v stocker
|
|
|
crewcabconnection
Custom Title Time!
Being Sid James
Posts: 1922
Threads: 293
Registered: April 22nd, 2003
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
Mood: Looking forward to week 10
|
| posted on June 22nd, 2005 at 08:39 PM |
|
|
N O I C E - bump
Loves a lolcat
|
|
|
Kombi_Rescue
Wolfsburg Wizard
Posts: 440
Threads: 35
Registered: February 26th, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
Mood: DSK member
|
| posted on June 22nd, 2005 at 08:44 PM |
|
|
that is FAT..luv to hear it with the throttle bodies sucking their little heart out.....what hp/kw rating ? 150 hp is stock cheers dsk steve
|
|
|
ABF2.016V
Casual Dubber
Posts: 26
Threads: 2
Registered: June 22nd, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
|
| posted on June 22nd, 2005 at 08:46 PM |
|
|
Stock, about 80kW at the wheels/110kW at the fly.
The car makes 105kW at the wheels on a stock head or 125kW at the wheels with a ported head on stock valves in the present spec, which is very mild.
Can quite easily spin 150kW at the wheels with some bottom end work and hotter cams
[Edited on 22/6/2005 by ABF2.016V]
-Mk1 Golf 2.0 16v ABF
-SEAT Ibiza Cupra 2.0 16v, built motor on Throttle Bodies
-SEAT Ibiza Cupra 2.0 16v stocker
|
|
|
Kombi_Rescue
Wolfsburg Wizard
Posts: 440
Threads: 35
Registered: February 26th, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
Mood: DSK member
|
| posted on June 22nd, 2005 at 08:58 PM |
|
|
i know that a lehman 16v[abf]engine[vwmotorsport] produces 191kw[265hp]...although the rod lenght is much greater over a stk 16v..are you running stk
crank/rod combo?is compression ratio stk?cheers steve
|
|
|
ABF2.016V
Casual Dubber
Posts: 26
Threads: 2
Registered: June 22nd, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
|
| posted on June 22nd, 2005 at 09:04 PM |
|
|
The VW-M. ABF block is also 236mm and uses the same length rods and wrist pins, but a billet crank with oversize bearings, though has 13:1 compression
and tapered DTH throttle bodies, mine are continuous DCOEs
This motor is sold with a stock bottom end, apart from ARP bolts and thus has 10.5:1 compression and 1984cc capacity (82.5x92.8).
I also use 278 deg cams, the motorsport ABF has 296s or 304s.
EDIT: Remeber, the ABF is the tall block 16v, you're probably thinking of the 9a, 6a, PL, KR, AAL, ADL 16vs which are all 220mm blocks and so have
shorter rods. The ABF also has longer valve stems and uses DIGI III injection rather than KE-Jet. or K-Jet, or Motronic.
[Edited on 22/6/2005 by ABF2.016V]
-Mk1 Golf 2.0 16v ABF
-SEAT Ibiza Cupra 2.0 16v, built motor on Throttle Bodies
-SEAT Ibiza Cupra 2.0 16v stocker
|
|
|
 barls
A.k.a.: Mr indestructible
Super Administrator
Causer of Chaos and Mayhem
Posts: 9470
Threads: 296
Registered: June 22nd, 2004
Member Is Offline
Location: cruising in denistone east
Theme: UltimaBB Streamlined2
Mood: indestructible? and listening to the voices
|
| posted on June 22nd, 2005 at 09:06 PM |
|
|
how about a location of the car mate as it will help you sell it?
|
|
|
ABF2.016V
Casual Dubber
Posts: 26
Threads: 2
Registered: June 22nd, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
|
| posted on June 22nd, 2005 at 09:07 PM |
|
|
Car is in Hobart, but I'll deliver it personally nationwide. Cheers
-Mk1 Golf 2.0 16v ABF
-SEAT Ibiza Cupra 2.0 16v, built motor on Throttle Bodies
-SEAT Ibiza Cupra 2.0 16v stocker
|
|
|
barls
A.k.a.: Mr indestructible
Super Administrator
Causer of Chaos and Mayhem
Posts: 9470
Threads: 296
Registered: June 22nd, 2004
Member Is Offline
Location: cruising in denistone east
Theme: UltimaBB Streamlined2
Mood: indestructible? and listening to the voices
|
| posted on June 22nd, 2005 at 09:08 PM |
|
|
not a problem mate i was just reading and didnt see that detail. hope you find the right buyer for it mate
|
|
|
ABF2.016V
Casual Dubber
Posts: 26
Threads: 2
Registered: June 22nd, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
|
| posted on June 22nd, 2005 at 09:10 PM |
|
|
Cheers for the help... yeah, I hope I find the right buyer too!! I've had far too many tyre kickers/joy riders and am getting pretty sick of it
-Mk1 Golf 2.0 16v ABF
-SEAT Ibiza Cupra 2.0 16v, built motor on Throttle Bodies
-SEAT Ibiza Cupra 2.0 16v stocker
|
|
|
Kombi_Rescue
Wolfsburg Wizard
Posts: 440
Threads: 35
Registered: February 26th, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
Mood: DSK member
|
| posted on June 22nd, 2005 at 09:19 PM |
|
|
the vwm block is milled 7mm off the deck height and the cyl head is angle cut to avoid valve interference..valves are also modified at the valve stems
to improved gas flow ...am aware of the difference between abf and 9a..abf block is a 2.0 ady/ade,only the oil gallery mod for the under piston
lubrication is reguired....love these engines but can be a little exy on the repair when they go bang.....60k for a lehman replacement vwm
engine.....even vw used electric pwr str and alloy pulley's to reduce hp theft... think you baby is worth every cent..what you playing with next?
cheers steve
|
|
|
ABF2.016V
Casual Dubber
Posts: 26
Threads: 2
Registered: June 22nd, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
|
| posted on June 22nd, 2005 at 09:22 PM |
|
|
I'm building an ABF turbo for my Mk1, but have most of the parts for this. I don't really drive the SEAT as much as I used to so might aswell sell
it and get some money!!! I'm sort of addicted to modifying it aswell, which isn't good when I need to be modifying my house instead :P
-Mk1 Golf 2.0 16v ABF
-SEAT Ibiza Cupra 2.0 16v, built motor on Throttle Bodies
-SEAT Ibiza Cupra 2.0 16v stocker
|
|
|
Kombi_Rescue
Wolfsburg Wizard
Posts: 440
Threads: 35
Registered: February 26th, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
Mood: DSK member
|
| posted on June 22nd, 2005 at 09:30 PM |
|
|
go the ABF code, need a lsd for the mk1? have a new 02a style VWM u2u me if your interested..sorry about the house,they suffer in silence anyway
cheers steve
|
|
|
ABF2.016V
Casual Dubber
Posts: 26
Threads: 2
Registered: June 22nd, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
|
| posted on July 8th, 2005 at 05:51 PM |
|
|
Car has been sold and delivered to a Brisbane buyer.
