| posted on November 7th, 2006 at 11:52 AM |
|
|
Scintilla Magneto $200
This was on my engine when I bought it.
It has been modified for racing use to increase its power.
It is used, but worked well when last run about 3 years ago.
Price is $200 plus postage or pick up.
In QLD on Gold Coast 4227
Have I forgotten anything?
Oh , a picture :
| Error |
| Sorry, you must be a registered user in order to download attachments. |
|
| Error |
| Sorry, you must be a registered user in order to download attachments. |
|
| Quote: | Originally
posted by westi
That's mad Alan.
|
|
|
|
dangerous
A.k.a.: Dave Butler Muffin Man
23 Windows of Awesome
Posts: 5901
Threads: 178
Registered: January 6th, 2005
Member Is Offline
Location: Gold Coast
Theme: UltimaBB Pro Blue ( Default )
Mood: 591
|
| posted on November 7th, 2006 at 05:52 PM |
|
|
This will make your engine look cool (6 volt OR 12 Volt!)
Plus it will give me food money...
| Quote: | Originally
posted by westi
That's mad Alan.
|
|
|
|
lohoon
Wolfsburg Wizard
Posts: 466
Threads: 67
Registered: September 5th, 2002
Member Is Offline
Location: muswellbrook
Theme: UltimaBB Pro Yellow
|
| posted on November 7th, 2006 at 06:46 PM |
|
|
Hi Dave,
what exactly do the modifications do?Will this run a standard engine ok or has it been recurved for a high revs motor?
|
|
|
type3lover
A.k.a.: The Smashed Repairer
Insano Dub Head
in the garage...
Posts: 796
Threads: 90
Registered: February 2nd, 2005
Member Is Offline
Location: Adelaide
Theme: UltimaBB Pro Blue ( Default )
Mood: stoked
|
| posted on November 7th, 2006 at 07:19 PM |
|
|
Hey Dave!
I would also like to know more about magneto ignition.
Silly question perhaps: Does the magneto negate the need for a coil and points? Lawn mowers use them and they produce spark just from rotation
alone...don't they?
Not hijacking, just asking and bumping!
Thanks, Toby :thumb
.
|
|
|
dangerous
A.k.a.: Dave Butler Muffin Man
23 Windows of Awesome
Posts: 5901
Threads: 178
Registered: January 6th, 2005
Member Is Offline
Location: Gold Coast
Theme: UltimaBB Pro Blue ( Default )
Mood: 591
|
| posted on November 8th, 2006 at 09:51 PM |
|
|
This magneto is a fully contained ignition system with no external coil.
This one has had mods to increase spark energy, from Burner Magnetos.
I understand that they came with an advance mechanism,
but I think this one is locked,
but it may be returned to full advance movement.
Because it is self contained, it does not matter if you have low battery voltage (6 or 12 volt)
It uses an earth connection to stop the ignition.
| Quote: | Originally
posted by westi
That's mad Alan.
|
|
|
|
bajaben
A.k.a.: Ben Alderson
Officially Full-On Dubber
Posts: 222
Threads: 33
Registered: May 10th, 2005
Member Is Offline
Location: Townsville, north queensland
Theme: UltimaBB Pro Blue ( Default )
Mood: need more power
|
| posted on November 8th, 2006 at 10:10 PM |
|
|
Can you find out if it works? if it does do you know what advance curve it runs? would it be usable on a street car? if so am very interested. so it
just slips in? no coil or anything? is there points or is it all electronic?
trunk monkey, because sometime getting your car back just isn't enough
|
|
|
dangerous
A.k.a.: Dave Butler Muffin Man
23 Windows of Awesome
Posts: 5901
Threads: 178
Registered: January 6th, 2005
Member Is Offline
Location: Gold Coast
Theme: UltimaBB Pro Blue ( Default )
Mood: 591
|
| posted on November 8th, 2006 at 10:20 PM |
|
|
| Quote: | Originally
posted by bajaben
Can you find out if it works? if it does do you know what advance curve it runs? would it be usable on a street car? if so am very interested. so it
just slips in? no coil or anything? is there points or is it all electronic?
|
I will find out about the curve, and it should run(will test it in an engine)
and it will slip right in using stock dizzy clamp.
It runs hi rev points.
No external coil, and yes you could run it on the street,
but you would have to fit a switch for the earth connection, otherwise it would keep running(no battery required)
| Quote: | Originally
posted by westi
That's mad Alan.
|
|
|
|
bajaben
A.k.a.: Ben Alderson
Officially Full-On Dubber
Posts: 222
Threads: 33
Registered: May 10th, 2005
Member Is Offline
Location: Townsville, north queensland
Theme: UltimaBB Pro Blue ( Default )
Mood: need more power
|
| posted on November 8th, 2006 at 10:26 PM |
|
|
is it possible to hook it up to the ignition so that it turns of with the car? what are high rev points? what effect will this have on the running of
the engine? and will unlocking it be a nessesity or could i jsut run it at a constant advance?
trunk monkey, because sometime getting your car back just isn't enough
|
|
|
dangerous
A.k.a.: Dave Butler Muffin Man
23 Windows of Awesome
Posts: 5901
Threads: 178
Registered: January 6th, 2005
Member Is Offline
Location: Gold Coast
Theme: UltimaBB Pro Blue ( Default )
Mood: 591
|
| posted on November 13th, 2006 at 11:30 AM |
|
|
Well it runs just fine.
It is actually running in this photo. Set at 30 degrees locked advance.
Hi rev points are those ones with a higher tension on their spring to stop point float at high revs.
The advance mechanism is permanently locked in the base of this Magneto,
with a bakelite drive.
I think that there is a unit that fits inside the base(from the VW industrial engines) that can replace this.
Even with this one locked and installed at 30 degrees, it starts and runs just fine.
I thought about it some more and I think you could wire the ignition key in to a relay,
that will earth out the primary voltage. Perhaps someone else can advise on this.

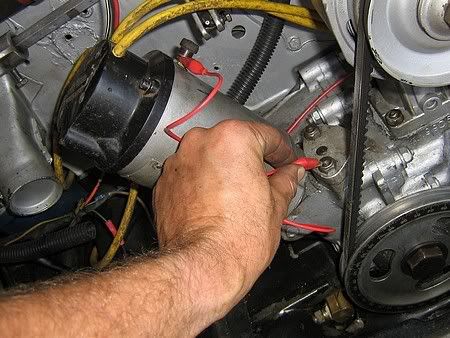

Here is how you can stop the engine, with and earth to ground.
| Quote: | Originally
posted by westi
That's mad Alan.
|
|
|
|
bajaben
A.k.a.: Ben Alderson
Officially Full-On Dubber
Posts: 222
Threads: 33
Registered: May 10th, 2005
Member Is Offline
Location: Townsville, north queensland
Theme: UltimaBB Pro Blue ( Default )
Mood: need more power
|
| posted on November 13th, 2006 at 04:47 PM |
|
|
nice. 30 degrees isn't that bad anyway, can i just wind it back a little so that it runs less than 30 constantly or is that all it can run? will that
make it stumble at idle or still be all good? and are hi rev points avaliable at any auto parts shop or will i have to get them from somewhere
special?
trunk monkey, because sometime getting your car back just isn't enough
|
|
|
type3lover
A.k.a.: The Smashed Repairer
Insano Dub Head
in the garage...
Posts: 796
Threads: 90
Registered: February 2nd, 2005
Member Is Offline
Location: Adelaide
Theme: UltimaBB Pro Blue ( Default )
Mood: stoked
|
| posted on November 13th, 2006 at 07:01 PM |
|
|
A relay with 2 sets of contacts would do the job I think. 1 for magneto earth break only and then 12V for everything else that's normally powered
when the key is ON.
.
|
|
|
