| posted on August 25th, 2008 at 10:54 PM |
|
|
plumbing question
This might sound silly but I forgot which coolant lines goes where on the radiator when using a flat-4 suby engine.
Is it bottom part on the engine to bottom part on the radiator or reversed?
Thanks
|
|
|
Brad
Wolfsburg Elder
Posts: 3764
Threads: 332
Registered: August 24th, 2002
Member Is Offline
Location: SE QLD, Mt Nebo
Theme: UltimaBB Pro Blue ( Default )
Mood: Manx Buggy Building
|
| posted on August 25th, 2008 at 11:19 PM |
|
|
Bottom part of engine to bottom part of radiator.
Think of it this way.. the bottom water inlet on the engine is the draw side of the water pump so you want water there all the time, thus the bottom
of the radiator feeds it so it has the best chance of there being water there for it.
|
|
|
72RSbug
Officially Full-On Dubber
Posts: 266
Threads: 49
Registered: January 4th, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 26th, 2008 at 12:01 AM |
|
|
Thanks, figured it was that way but the place of the thermostat made me doubt and I don't have my old radiator anymore to check how things used to be
hooked up.
|
|
|
ricola
Wolfsburg Wizard
Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline
Location: UK
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 26th, 2008 at 12:49 AM |
|
|
For some reason Subaru put the thermostat on the inlet. I will be relocating it to the outlet as most other engines, that results in a more stable
operating temperature and it is much easier to bleed the system among other benefits...
|
|
|
72RSbug
Officially Full-On Dubber
Posts: 266
Threads: 49
Registered: January 4th, 2005
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 26th, 2008 at 12:59 AM |
|
|
just to make sure, the spring that's on the thermostat goes towards the water pump side. correct?
|
|
|
rocknrob
A.k.a.: Rob
Insano Dub Head
Posts: 844
Threads: 90
Registered: December 18th, 2003
Member Is Offline
Location: Gold Coast
Theme: UltimaBB Pro Black
Mood: mystic
|
| posted on August 26th, 2008 at 06:11 AM |
|
|
| Quote: | Originally
posted by ricola
For some reason Subaru put the thermostat on the inlet. I will be relocating it to the outlet as most other engines, that results in a more stable
operating temperature and it is much easier to bleed the system among other benefits...
|
how are you going to do that? thats interesting becos my radiator is way up the front of the kombi so by the time it gets to the thermostat it must be
a lot cooler
|
|
|
Brad
Wolfsburg Elder
Posts: 3764
Threads: 332
Registered: August 24th, 2002
Member Is Offline
Location: SE QLD, Mt Nebo
Theme: UltimaBB Pro Blue ( Default )
Mood: Manx Buggy Building
|
| posted on August 26th, 2008 at 09:32 AM |
|
|
| Quote: | Originally
posted by 72RSbug
just to make sure, the spring that's on the thermostat goes towards the water pump side. correct?
|
yep from memory.
Just look at it and see which way it opens, water will be traveling up so it will need to open with water flowing up.
Subaru put the thermostat in before the water pump because the system is a "Sip" design rather than a Fully Open design, it is designed like this to
keep the operating temp as constant as possible.
If the thermostat was on the other end then it would be harder to regulate with a "Sip"
|
|
|
1303Steve
A.k.a.: Steve Carter
Scirocco Rare
Posts: 8636
Threads: 559
Registered: August 27th, 2002
Member Is Offline
Location: Sydney, NSW
Theme: UltimaBB Pro Blue ( Default )
Mood: Parrot Heading
|
| posted on August 26th, 2008 at 09:51 AM |
|
|
Hi
The cooling system also has a natural thermo siphon as well, the hot water goes to the top, cool water falls to the bottom, so even with the motor
stopped after running the water will still slowly circulate.
That's why its best to mount cooling fans near top of the radiator.
Steve
|
|
|
ricola
Wolfsburg Wizard
Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline
Location: UK
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 28th, 2008 at 05:49 AM |
|
|
That's exactly why I will be relocating the thermostat, the stock bypass flow on its own struggles to maintain the stat bulb at the real operating
temperature which results in a delay of it opening, this is exaggerated when used in mid/rear conversions like these. With the stat on the outlet
there is never any worry of it seeing the correct temp as pretty much all the flow is forced past it. It's fairly easy to convert, just cut the
centre out of the stock stat and use an external one on the main engine outlet (I have used a BMW E30 4 cylinder one), also block the stock heater
supply pipe and use the new stat bypass for the heater supply. Depending on year of the engine you may have to restrict some original bypass lines.
In the UK the K series engine suffers badly from this problem, Land Rover even supply a factory kit to convert to external stat on the outlet! I also
did the conversion on my last kit car which used a K series mid-mounted like the Lotus Elise and it worked a dream. With that engine it was even worse
as the return was to the aluminium head which resulted in nasty thermal shocks as the thermostat cycled and one of the reasons for the engine's
apetite for head gaskets...
| Quote: | Originally
posted by rocknrob
| Quote: | Originally
posted by ricola
For some reason Subaru put the thermostat on the inlet. I will be relocating it to the outlet as most other engines, that results in a more stable
operating temperature and it is much easier to bleed the system among other benefits...
|
how are you going to do that? thats interesting becos my radiator is way up the front of the kombi so by the time it gets to the thermostat it must be
a lot cooler
|
|
|
|
rocknrob
A.k.a.: Rob
Insano Dub Head
Posts: 844
Threads: 90
Registered: December 18th, 2003
Member Is Offline
Location: Gold Coast
Theme: UltimaBB Pro Black
Mood: mystic
|
| posted on August 28th, 2008 at 08:07 AM |
|
|
|
|
|
1303Steve
A.k.a.: Steve Carter
Scirocco Rare
Posts: 8636
Threads: 559
Registered: August 27th, 2002
Member Is Offline
Location: Sydney, NSW
Theme: UltimaBB Pro Blue ( Default )
Mood: Parrot Heading
|
| posted on August 28th, 2008 at 08:51 AM |
|
|
Hi Ricola
Do you have a photo of the BMW thermostat?
Steve
|
|
|
ricola
Wolfsburg Wizard
Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline
Location: UK
Theme: UltimaBB Pro Blue ( Default )
|
| posted on August 28th, 2008 at 10:36 PM |
|
|
Here you go:

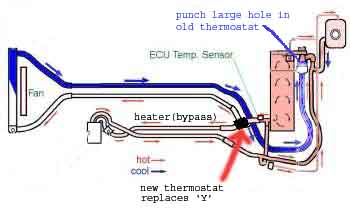

Also here's a diagram I did for the Libra's conversion:
I'm guessing all this isn't such a problem for you guys but in cooler climates it is. A lot of the Canadian vanagon guys use a thermostat spacer,
that brings it further away from the cold return and lets the bypass work a bit better.
|
|
|
GeorgeL
Officially Full-On Dubber
Posts: 231
Threads: 11
Registered: February 5th, 2006
Member Is Offline
Location: 7200 miles off the Queensland coast
Theme: UltimaBB Pro Blue ( Default )
|
| posted on October 2nd, 2008 at 04:15 AM |
|
|
This has been discussed on and off and various reasons speculated for the oddness of the Subaru setup. The intent seems to be to get heat to the
heater core as rapidly as possible, since the heater core always sees full flow.
Various setups have been suggested for an outlet thermostat. the simplest was just a couple of Chevy thermostat covers placed together with a
thermostat between and placed in the upper hose. This setup must have a small (as in 1mm) hole in the thermostat to allow a little water to flow to
actuate the thermostat. Most old-style thermostats include this hole, often with a little rattle pin in it to prevent clogging.
IMO, the best setup is the Canadian Tom Shiels thermostat spacer with a dedicated bypass line. Keeps things the way Subaru intended and compensates
for the much larger cooling system volume of the bus conversion.
The bypass line connects to the small nipple while the heater flow is now far enough downstream of the thermostat that it does not affect the
thermostat action.
One thing that various people have pointed out is the need to use a genuine Subaru thermostat. Aftermarket thermostats may not protrude into the
bypass flow enough to work properly.
|
|
|
Baja Wes
Bishop of Volkswagenism
V6 Baja Pioneer
Posts: 3119
Threads: 94
Registered: August 26th, 2002
Member Is Offline
Location: Brisbane
Theme: UltimaBB Pro Blue ( Default )
Mood: Content
|
| posted on October 2nd, 2008 at 09:34 AM |
|
|
The thermostat on my V6 is on the inlet to the water pump too.
Well it was until I removed it to install the electric water pump.
|
|
|
1303Steve
A.k.a.: Steve Carter
Scirocco Rare
Posts: 8636
Threads: 559
Registered: August 27th, 2002
Member Is Offline
Location: Sydney, NSW
Theme: UltimaBB Pro Blue ( Default )
Mood: Parrot Heading
|
| posted on October 2nd, 2008 at 09:38 AM |
|
|
Hi Wes
How do you find the electric water pump? I have one sitting in my cupboard.
Steve
|
|
|
hansend23
Learner Dubber
Posts: 2
Threads: 0
Registered: March 21st, 2009
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
|
| posted on April 24th, 2009 at 05:53 PM |
|
|
| Quote: | Originally
posted by ricola
Here you go:
Also here's a diagram I did for the Libra's conversion:
I'm guessing all this isn't such a problem for you guys but in cooler climates it is. A lot of the Canadian vanagon guys use a thermostat spacer,
that brings it further away from the cold return and lets the bypass work a bit better.
|
New guy here! so i think i have it right.bypass to heat,mid to top engine out,and the one on the right to rad. im happy to find this.mine is a
behr,made in italy.
looks to be the same function. |
|
|
Joel
Scirocco Rare
Now containing 100% E-Wang
Posts: 9368
Threads: 211
Registered: February 14th, 2006
Member Is Offline
Location: Northern Rivers NSW
Theme: UltimaBB Pro Purple
Mood: Tact Level 0.00
|
| posted on April 25th, 2009 at 05:33 PM |
|
|
funny trawling thro ebay last night looking at Beema radiators i came across one of those thermostat assemblies brand new
|
|
|
hansend23
Learner Dubber
Posts: 2
Threads: 0
Registered: March 21st, 2009
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
|
| posted on April 26th, 2009 at 06:26 AM |
|
|
mine isnt working.it fluctuates and doesnt get hot enough.
and when the stat is open the bypass closes so no heater flow.
why does it work on ricolas?and not mine
about 14litres of coolent?
exposed metal lines?
lines bolted aginst the pan? |
|
|
Joel
Scirocco Rare
Now containing 100% E-Wang
Posts: 9368
Threads: 211
Registered: February 14th, 2006
Member Is Offline
Location: Northern Rivers NSW
Theme: UltimaBB Pro Purple
Mood: Tact Level 0.00
|
| posted on April 26th, 2009 at 08:18 AM |
|
|
i'd make a bet the extra long lenght of your lines as well as the heatercore being all the up front would be playing a part in it
that huge merc rad is plenty big enough and the rad feed line loses abit of heat along the way
how come your bypass is closing?
|
|
|
ricola
Wolfsburg Wizard
Posts: 437
Threads: 9
Registered: February 5th, 2003
Member Is Offline
Location: UK
Theme: UltimaBB Pro Blue ( Default )
|
| posted on April 27th, 2009 at 03:05 AM |
|
|
I've been talking offline to him about it and I'm sure it is his heater return not plumbed in to the normal cool side properly. A mate has his sti
speedster replica plumbed in like this and it works great, bleeds easily too..
|
|
|
TheLionOfAfrica
Learner Dubber
Posts: 3
Threads: 1
Registered: May 18th, 2009
Member Is Offline
Theme: UltimaBB Pro Blue ( Default )
|
| posted on May 18th, 2009 at 11:56 AM |
|
|
Cooling problems on a syncro with a Toyota 3cT conversion
Hi everyone
I have a Toyota 3ct diesel in my syncro.
Its a great conversion, except I tend to have a problem with cooling when taking on steep inclines (like mountain pass's).
with 4x4'ing it's great, I can go anywhere with her.
some vid's on
http://www.bastilledeblignaut.co.za/4x4.htm
(at bottom of page)
can anyone help???? |
|
|
