Sale: SC14 Toyota Supercharger. Now on EBAY at $99!
Hi,
Had this puppy in my collection for a while, but haven't had the patience to put it to good use. Going turbo (lazy way) as opposed to sorting out
pulleys etc for this thing.

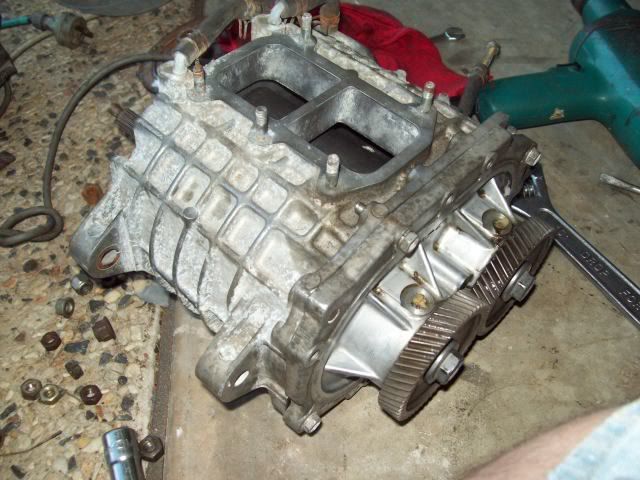

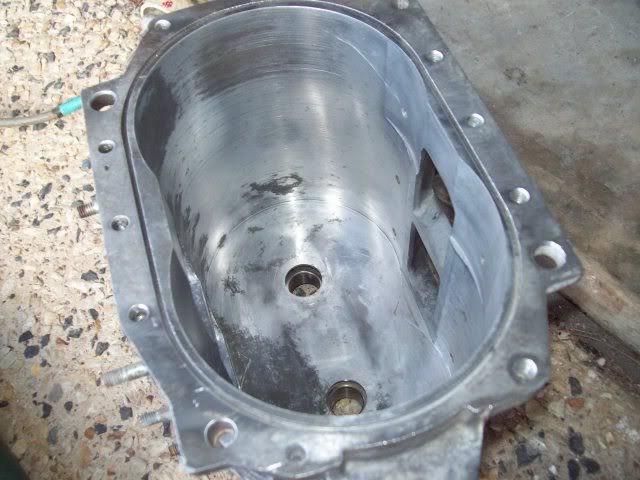

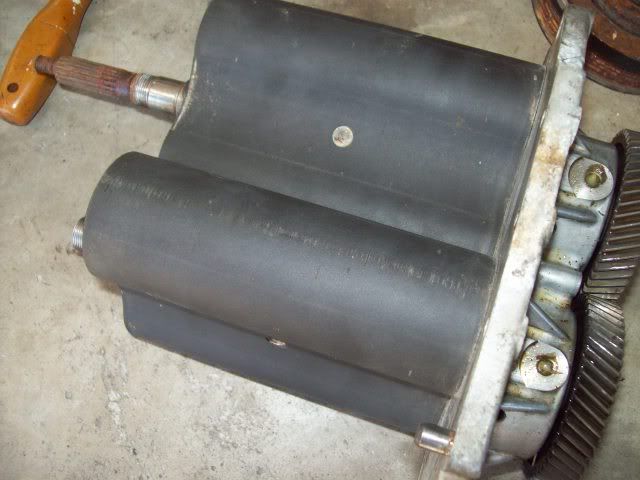

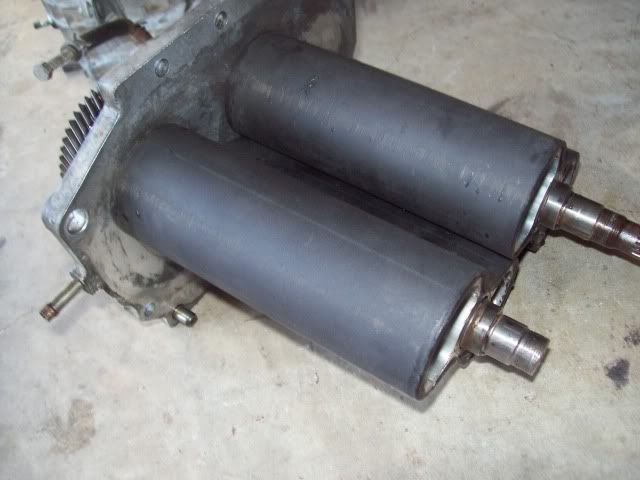

I stripped it, cleaned it, refilled with clean fresh ATF fluid (general consensus agrees to this more affordable alternative as opposed to the
original lanolin oil). No free play in input shaft, spins freely. Gave it a rinse over this morning with a wet rag to wipe the storage dust off.
Don't worry, holes were covered by gaffer tape during storage. blotchiness on casing is only cosmetic, alumina (aluminum oxide).
As is. IE: No pulley, and don't feel like hunting around the folks house for the input and output plenum's.
Make an offer! phwah! Will swap for kombi box (Must be irs, not 3 rib
1600), good longblock etc, sea airplane floats, tinny etc.
PM me an offer.
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on October 9th, 2012 at 08:39 PM
For a fair offer i'll throw in the intake and exhaust plenums from my folks house. Its down the road.
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
donn
Wolfsburg Elder
Posts: 3515
Threads: 428
Registered: November 30th, 2005
Member Is Offline
Location: NEWCASTLE NSW
Theme: UltimaBB Pro Blue
Mood: LAID BACK AND CONFUSED
posted on October 10th, 2012 at 06:24 AM
Why would your folks house have intake and exhaust plenums ?
I dream of a day when a chicken can cross a road without being asked for it's motive!
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on October 10th, 2012 at 07:35 AM
I have moved out this yea and because i unbolted them and packed them in boxes in the garage when i stripped and rebuilt it a few years back. I just
ahven't got the shed assembled yet to fit all my boxes of parts
Its a flat pack at the moment awaiting slab. Only a select few
bits came with me for a sc14 feasibility study.
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
donn
Wolfsburg Elder
Posts: 3515
Threads: 428
Registered: November 30th, 2005
Member Is Offline
Location: NEWCASTLE NSW
Theme: UltimaBB Pro Blue
Mood: LAID BACK AND CONFUSED
posted on October 10th, 2012 at 08:25 AM
I think I wasted a perfectly good question.
I dream of a day when a chicken can cross a road without being asked for it's motive!
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on October 17th, 2012 at 12:58 PM
bumpity! Make me an offer
And if the wife whines about it, you'll be sure the supercharger whine will drown her out
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on October 21st, 2012 at 12:10 AM
bump back up
Will trade for someone to do concrete form work for 3 by 3 metre shed. Random but putting it out there haha.
or later good working kombi gearbox (1800 or 2 litre)
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
HappyDaze
A.k.a.: Greg Mackie
Son of Jim - Creator of Good
Superannuated
Posts: 2887
Threads: 141
Registered: June 13th, 2009
Member Is Offline
Location: Southern Highlands NSW
Theme: UltimaBB Pro Blue ( Default )
Mood: Happy enough
posted on October 21st, 2012 at 08:31 AM
Quote:
Originally
posted by donn
I think I wasted a perfectly good question.
Not completely wasted.
And a perfectly good answer......air-conditioning, maybe? [Just trying to be sensible, and also giving the blower a bump].
I'd rather wear a Beetle out by racing it than by polishing it!
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on November 1st, 2012 at 10:21 AM
Found a mounting solution for the sc14, and includes the belt drive too. Jacee Alternator kit mount. Don't know if you can purchase iwthout the
alterator. But the concept could be feasible with some modification.
As you may or may not be a aware, teh biggest challenge is the length of the supercharger from the fan shroud. sc12's are smaller, thus not an issue
but are 200cc's less than sc14.
Bump.
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
matberry
Super Moderator
Go hard or go home
Posts: 8114
Threads: 134
Registered: March 7th, 2006
Member Is Offline
Location: Cooroy Qld
Theme: UltimaBB Pro Blue
Mood: enjoying waving at all my Kombi buddies from my T3
posted on November 1st, 2012 at 10:28 AM
So what boost capabilities are available out of that blower? ie size engine for expected boost
Matt Berry Motorsports...air cooled advice, repairs and mods Ph 0408 704 662
OFF-ROAD,CIRCUIT,DRAG,STREET,ENDURANCE
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on November 1st, 2012 at 10:52 AM
The supercharger was factory fitted to 1G-GZE inline 2litre 6cylinder supras from 85 to early 90's. Toyota designed the SC14 to rotate at 1.25 times
the speed of the crank, as well as produce boost at lower engine rpm. Also, the 1G-GZE redlined at 7,500 rpm.
So to answer your question, stock boost for the 2litre was a mild 7 psi. However, this was tuned for the 7500 rpm red line. Thus, if you had a 6000rpm
red line on the veedub, you could increase the pulley ratio and spin the sc14 faster at that rpm (without exceeding factory limits of 1.25 x 7500rpm),
thus more boost. It'll be safe to say that 10psi would be a nice round number for boost for 2ltr.
Furthermore: The SC14 displaced 1,420 cc per revolution, compared with the SC12's 1,200cc displacement. Toyota's SC14 measured 12.0 inches in
length, 5.8 inches in width and 10.0 inches in height, and weighed 26.2 lbs. The outlet pipe on both superchargers measured 2.24 inches in diameter.
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
matberry
Super Moderator
Go hard or go home
Posts: 8114
Threads: 134
Registered: March 7th, 2006
Member Is Offline
Location: Cooroy Qld
Theme: UltimaBB Pro Blue
Mood: enjoying waving at all my Kombi buddies from my T3
posted on November 1st, 2012 at 11:03 AM
Cool....so seeing you may already have some of the formula's. Let's say you had an 1.8 or 1.9 litre engine, and say 5800 was your limit. Overdriving
the blower may achieve what boost?
Matt Berry Motorsports...air cooled advice, repairs and mods Ph 0408 704 662
OFF-ROAD,CIRCUIT,DRAG,STREET,ENDURANCE
Joel
Scirocco Rare
Now containing 100% E-Wang
Posts: 9368
Threads: 211
Registered: February 14th, 2006
Member Is Offline
People have been running them on 3.8 Crapodoore lumps for years some upto 12psi.
THe SC12s are supposedly reliable upto 14psi so SC14 should be around the same, heat gets to the teflon coating on the lobes if your not careful.
I had mine upto 10psi on the bug but thats with the fuel mix going through to help cool it.
It still looks like new inside.
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on November 1st, 2012 at 06:01 PM
Quote:
Originally
posted by matberry
Cool....so seeing you may already have some of the formula's. Let's say you had an 1.8 or 1.9 litre engine, and say 5800 was your limit. Overdriving
the blower may achieve what boost?
Hi Matt, did some calculations here they are as follows. however, assuming you overdrive the supercharger to ahve the same max rpm as in the supra
application, you are looking at a whopping 20 psi! (doesn't include pressure/friction losses, give a generous couple of psi etc to be safe).
Assuming we don’t rev the sc14 more than the supra red line allows (ie: within design), for the supra the supercharger’s max speed in factory
application (with 1.25 ratio and 7500rpm engine speed) is 9375 rpm. For a vw engine at 5800rpm, to achieve sc14 max speed of 9375, we require pulley
ratio of 1.616. So… lets find the max pressure we can achieve .
SC14:
Displacement: 1.4 liters = 1400cc
Max Speed (in supra): 9375rpm
Engine max rpm: 5800rpm
Engine capacity: 1.8ltr (1800cc)
crank pulley to supercharger pulley Ratio: 1.616
1400 x 1.616 = 2262.4cc per crank turn
2262.4cc – 900cc(1/2 engine cc) = Extra flow of 1362.4cc per crank turn
1362.4/900= 1.513 bar (21.9 psi!!!)
For 1.9ltr:
Engine max rpm: 5800rpm
Engine capacity: 1.9ltr (1900cc)
crank pulley to supercharger pulley Ratio: 1.616
1400 x 1.616 = 2262.4cc per crank turn
2262.4cc – 950cc(1/2 engine cc) = Extra flow of 1312.4cc per crank turn
1312.4/950= 1.381 bar (20.03 psi!)
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on November 1st, 2012 at 06:04 PM
please feel free to let me know if these calcs are incorrect or in need of amending.
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on November 9th, 2012 at 02:45 PM
bump.
Somebody make me an offer
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on November 10th, 2012 at 12:34 PM

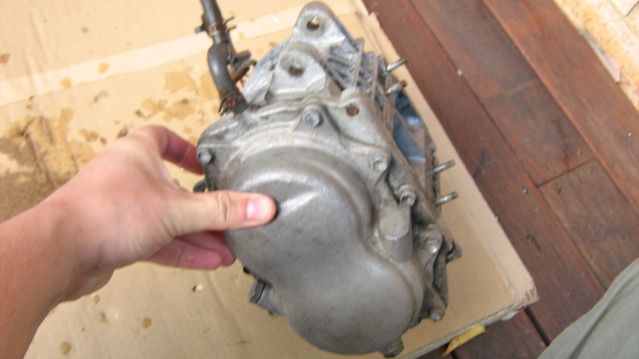

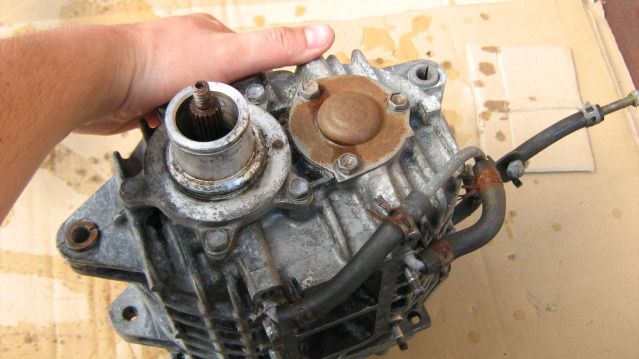

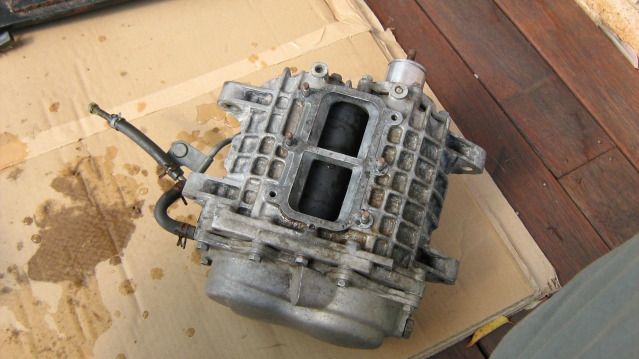

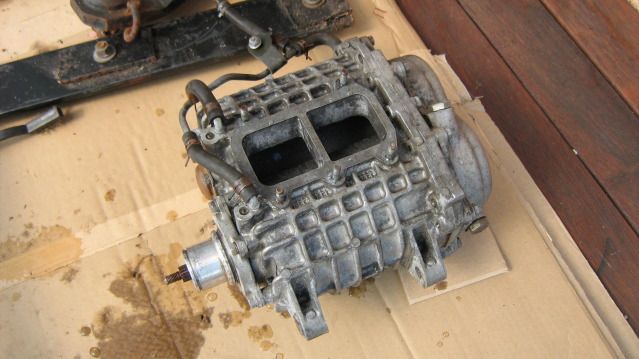

More piccies from when i disassembled a few years back for the cleanup.
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
pete wood
A.k.a.: figure itout
23 Windows of Awesome
Posts: 6828
Threads: 389
Registered: January 15th, 2004
Member Is Offline
Location: Nth Nth StMarys, Sydney
Theme: UltimaBB Pro White
Mood: upgrades = jackstands
posted on November 10th, 2012 at 01:30 PM
Is this the model that will fit on a type1 motor without having to recess it into the fanshroud?
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on November 10th, 2012 at 02:25 PM
If you were to mount it in the middle with a direct drive then no sorry, its the bigger version. THe one your thinking of is the smaller sc12 (as
opposed to sc14) which was the one Joel used.
If you could fabricate a belt setup with idler pulley (pain in the arse) it'll work well without recessing the fan shroud, but would take a bit of
time and designing.
The 1400cc per revolution would be the fruit of your labour though lol.
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on November 10th, 2012 at 02:31 PM
Trying to look for a picture i had from a while ago... with the sc14 (this charger) sitting against teh fan shroud the pulley drive was approx 110mm
(from memory) back from the crank pulley.
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
bajachris88
A.k.a.: Chris Leete
23 Windows of Awesome
The international telephone dialing code for Antarctica is 672.
Posts: 6661
Threads: 534
Registered: April 8th, 2005
Member Is Offline
Location: Tanah Merah, SE-QLD
Theme: UltimaBB Pro Blue ( Default )
Mood: A bee bit ma' bottom, now ma' bottom's big!
posted on November 11th, 2012 at 10:24 PM
Now listed on ebay,
starting at $99. Happy to post.
Thanks,
Will hopefully free up some dough for an alignbore and bearings
Chris.
(ô_!_/ô) (ô_!_/ô)
69' baja: kombi box, thing spindles, irs, disc front, type 3 rear drums, 2 inch lift kit, 31x10 rears.
New engine in process: 94mm p&bs, 74mm C/w chomol Crank, 35.5x39 SP heads, turbo. Wierd combo, hopeful torque monsta!
Smiley
A.k.a.: Daniel Stephens
Veteran Volks Folk
Posts: 2125
Threads: 110
Registered: October 29th, 2008
Member Is Offline
Location: Yeppoon, Central Queensland
Theme: UltimaBB Pro Blue
Mood: Synchro'd
posted on November 12th, 2012 at 10:36 PM
I'm a little sad to see you are selling this Chris. But I'm glad that the money will be going towards your new engine for the Baja! You need to get
that thing done so we can go for a play offroad.
Smiley
If you said I was a Volkswagen man, you'd be right.
phwah! Will swap for kombi box (Must be irs, not 3 rib
1600), good longblock etc, sea airplane floats, tinny etc.
